Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Motor Thermal Protector
Created with Pixso. Bimetallic Electric Motor Thermal Cut Out Overload Protector Compact Switch For Active Suspension Motor
Name
  • Name
  • Name
  • Name
  • Name

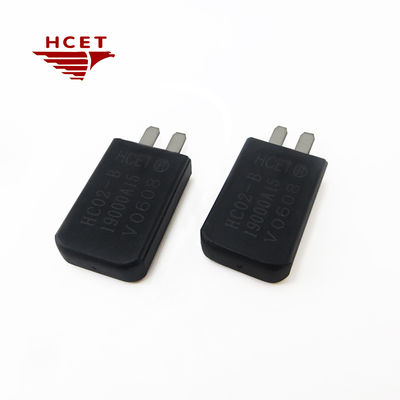

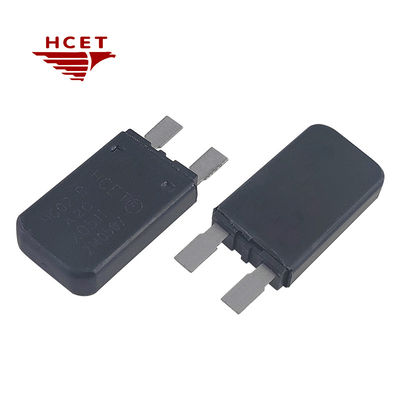

Bimetallic Electric Motor Thermal Cut Out Overload Protector Compact Switch For Active Suspension Motor

Brand Name: HCET
Model Number: HC02-B
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL, ROHS
Document:
HC02.pdf
Product Name:
HC02-B Motor Thermal Protector
Material:
Plastic Case
Temperature Range:
60~180℃
Tolerance:
±8℃,±10℃
Voltage:
250V AC/30V DC
Current:
Customizable
Application:
Automotive Active Suspension Motor
Packaging Details:
10000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

Bimetallic motor thermal cut out

,

motor thermal cut out Compact Switch

,

Bimetallic electric motor thermal protection

Product Description
Bimetallic Electric Motor Thermal Cut Out Overload Protector Compact Switch For Active Suspension Motor
Product Specifications
Attribute Value
Product name HC02-B motor thermal protector
Material Plastic case
Temperature range 60~180℃
Tolerance ±8℃,±10℃
Voltage 250V AC/30V DC
Current Customizable
Application Automotive Active Suspension Motor
Product Description

The HCET HC02 series represents advanced bimetal motor protection technology, engineered to safeguard critical electromechanical systems against overheating and current overloads. This precision-engineered thermal cutoff switch combines temperature-sensitive bimetallic technology with current monitoring capabilities, offering comprehensive protection for motors up to 30A/250VAC.

Certified RoHS compliant and designed for harsh operating environments, our flame-retardant housing ensures reliable performance in automotive, industrial, and commercial applications.

Key Features
  • Dual-Sensing Protection: Bimetallic actuator with current-sensitive trip mechanism provides simultaneous thermal and electrical overload protection (4-10s response time)
  • Extended Temperature Range: Precision-calibrated trip points from 60°C to 180°C (±8°C tolerance) with 15VDC/250VAC switching capacity
  • Customizable Protection Parameters: Field-adjustable current rating (1-30A) and optional temperature settings for application-specific requirements
  • Enhanced Electrical Durability: 30,000+ mechanical cycles with silver alloy contacts ensuring <50mΩ contact resistance
Electrical Characteristics
60℃~170℃
Operating temperature range, Customizable temperature
4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance
1A~30A
The overload current tripping range can be customized according to customer's requirements
Electrical Ratings
1~30amps/15 volts DC | 1~15amps/250 volts AC
1~15amps/30 volts DC | 1~30amps/125 volts AC
Product Dimensions
Bimetallic Electric Motor Thermal Cut Out Overload Protector Compact Switch For Active Suspension Motor 0
Dimension specifications

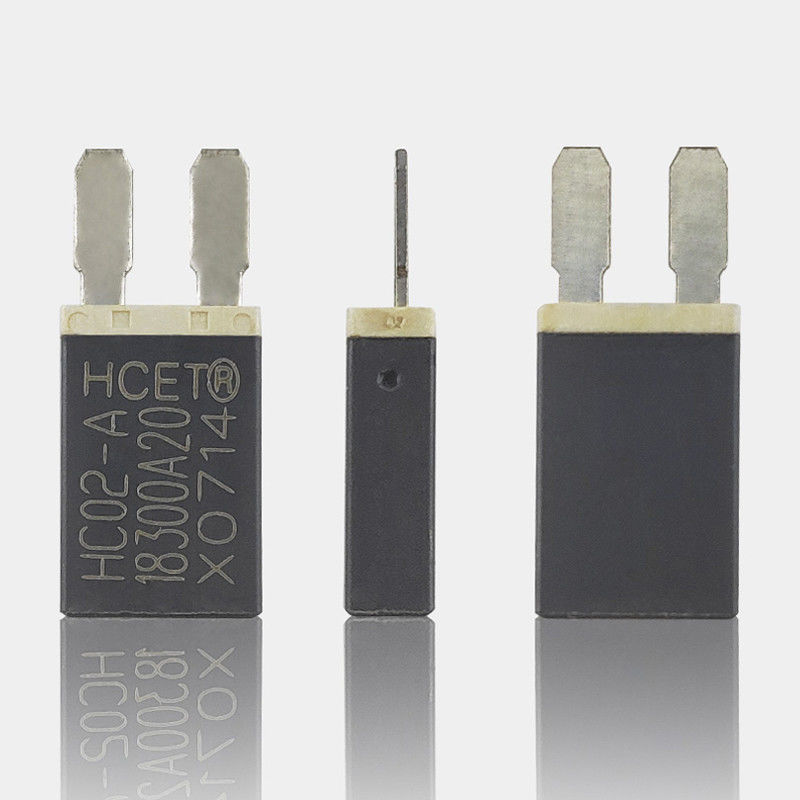

Product Details
Bimetallic Electric Motor Thermal Cut Out Overload Protector Compact Switch For Active Suspension Motor 1
Detailed product view
Application
Bimetallic Electric Motor Thermal Cut Out Overload Protector Compact Switch For Active Suspension Motor 2
Typical application in automotive active suspension motor
