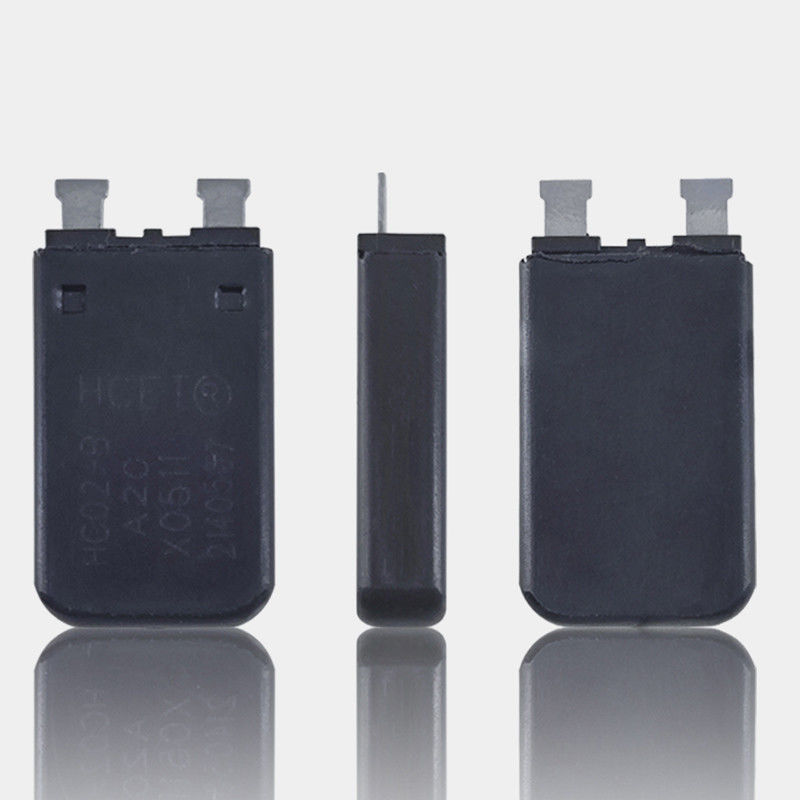

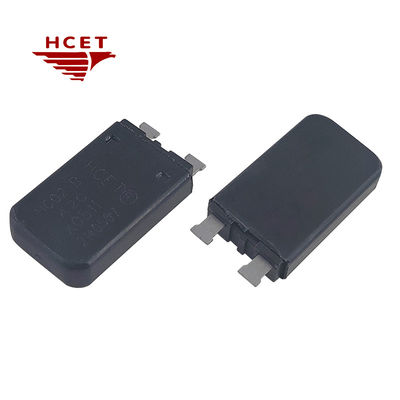

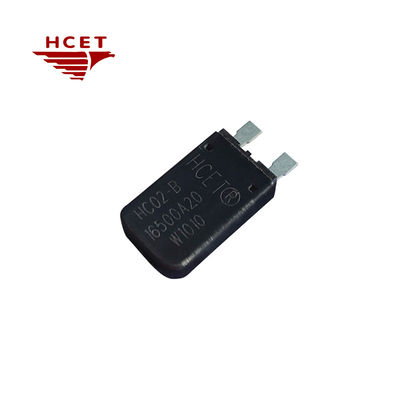

HC02-B Bimetal Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch for Power Liftgate Motor

Name: HC02-B Bimetal Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch for Power Liftgate Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-B
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-B
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02-B Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Power Liftgate Motor

Packaging Details:

10000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

30a motor thermal protector

Product Description

HC02-B Bimetal Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch for Power Liftgate Motor

Product Specifications

Attribute	Value
Product name	HC02-B motor thermal protector
Material	Plastic case
Temperature range	60~180℃
Tolerance	±8℃,±10℃
Voltage	250V AC/30V DC
Current	Customizable
Application	Power Liftgate Motor

Product Description

The HCET HC02 series bimetal motor overload protector delivers dual protection against overheating (60℃-180℃ ±8℃) and overcurrent (1-30A adjustable) with industry-leading 4-10s response time. Engineered with aerospace-grade bimetal discs and flame-retardant housing, it ensures 30,000+ operation cycles in harsh environments (-40℃ to 200℃ ambient).

Key Features

Dual-Sensing Technology: Simultaneous monitoring of winding temperature and current
Smart Reset Mechanism: Auto-reset models with ±3% current tolerance for precision motor management
Operational Excellence: 85℃/85% RH damp heat (1,000hrs), 15G vibration/50G shock (MIL-STD-202), Salt spray corrosion (96hrs NSS)

Electrical Characteristics

60℃~170℃

Operating temperature range, Customizable temperature

4S~10S

Special action time can be customized

±8°C, ±10℃

Temperature Tolerance

1A~30A

The overload current tripping range can be customized according to customer's requirements

Electrical characteristics:

1~30amps/15 volts DC | 1~15amps/250 volts AC

1~15amps/30 volts DC | 1~30amps/125 volts AC

Dimensions

Product Details

Application
