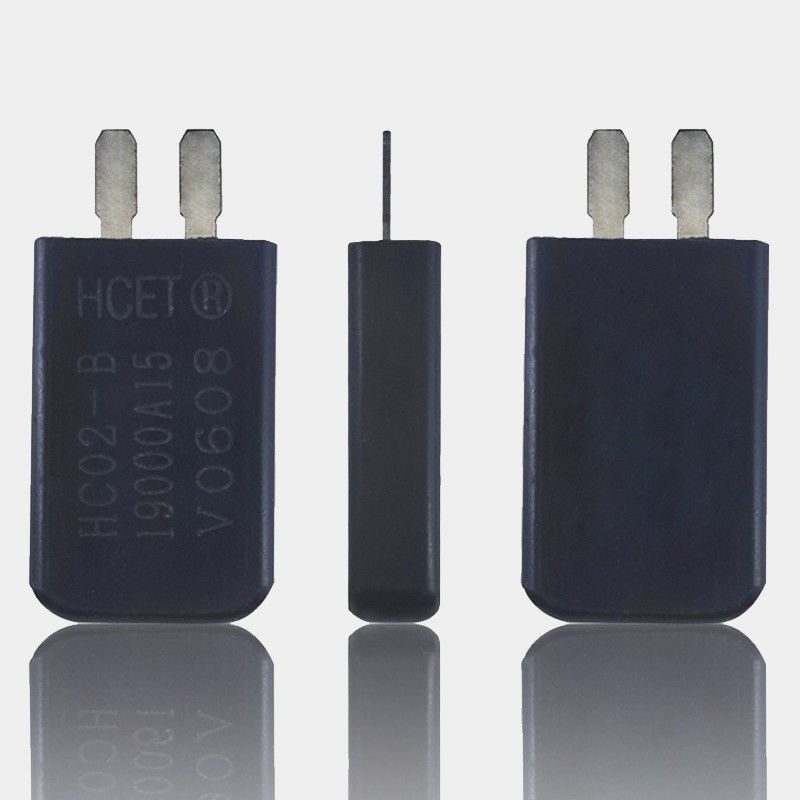

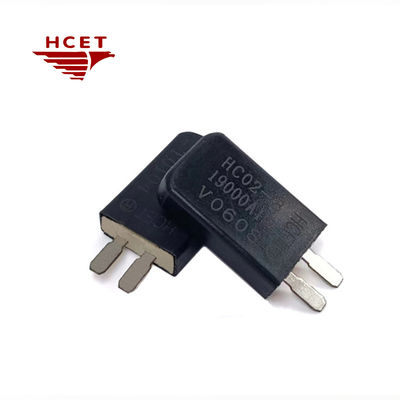

HC02-B Bimetal Motor Overload Protector 30A Thermal Cutout Switch Over-current and Over-heating Protection for ABS motor

Name: HC02-B Bimetal Motor Overload Protector 30A Thermal Cutout Switch Over-current and Over-heating Protection for ABS motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-B
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-B
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02-B Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

ABS Motor

Packaging Details:

10000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

30a motor thermal protector

Product Description

HC02-B Bimetal Motor Overload Protector 30A Thermal Cutout Switch

Product Overview

The HCET HC02 bimetal motor protector offers precise thermal overload protection (60°C-180°C ±8°C) for automotive and industrial equipment. Engineered with aerospace-grade bimetal technology, it automatically cuts off power within 4-10 seconds when detecting overheating or overload currents up to 30A.

This RoHS-certified protector ensures reliable operation in harsh environments (-40°C to +200°C) for wiper motors, sliding door actuators, sunroof mechanisms, and power tools. Customizable trip current settings and different terminal versions available.

Technical Specifications

Attribute	Value
Product name	HC02-B motor thermal protector
Material	Plastic case
Temperature range	60~180℃
Tolerance	±8℃,±10℃
Voltage	250V AC/30V DC
Current	Customizable
Application	ABS motor

Key Features

Dual-Sensing Protection: Simultaneously monitors temperature and current for 360° motor safety
Precision Engineering: ±8°C temperature tolerance & ±5% current accuracy
Heavy-Duty Performance: 30A/250VAC rating withstands 100,000 cycles - ideal for automotive starter motors and industrial pumps
Global Compliance: CE/RoHS certified with flame-retardant housing
Smart Customization: Choose terminal types (fast-on/PCB/screw), activation angles (15°-90°)
Cross-Industry Application: Proven in automotive OEMs, elevator systems, medical equipment, and renewable energy installations

Electrical Characteristics

60℃~170℃

Operating temperature range, Customizable temperature

4S~10S

Special action time can be customized

±8°C, ±10℃

Temperature Tolerance

1A~30A

The overload current tripping range can be customized according to customer's requirements

Electrical Characteristics

1~30amps/15 volts DC | 1~15amps/250 volts AC

1~15amps/30 volts DC | 1~30amps/125 volts AC

Dimensions

Detailed dimension diagram of HC02-B protector

Product Details

Detailed construction of the thermal protector

Application Examples

Typical applications in industrial and automotive systems
