Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Motor Thermal Protector
Created with Pixso. HC02 High Precision Motor Overload Protector 1-30A 60-180°C Thermal Cutoff Switch RoHS/UL Certified for HVAC Blower Motor
Name
  • Name
  • Name
  • Name

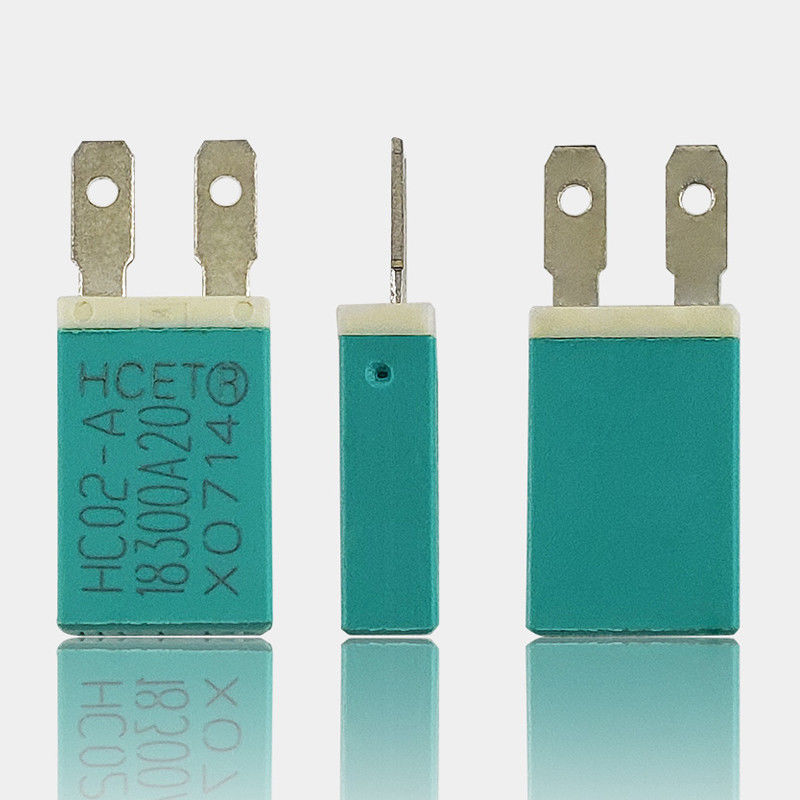

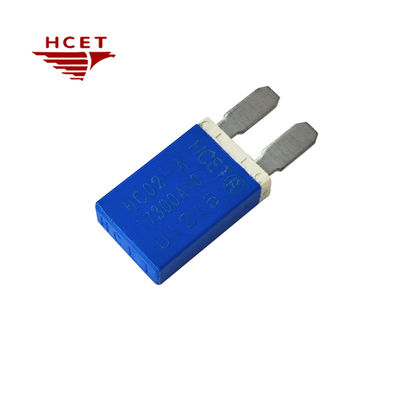

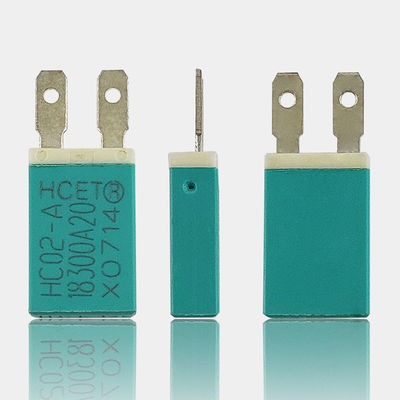

HC02 High Precision Motor Overload Protector 1-30A 60-180°C Thermal Cutoff Switch RoHS/UL Certified for HVAC Blower Motor

Brand Name: HCET
Model Number: HC02-A
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL, ROHS
Document:
HC02.pdf
Product Name:
HC02 Motor Thermal Protector
Material:
Plastic Case
Temperature Range:
60~180℃
Tolerance:
±8℃,±10℃
Voltage:
250V AC/30V DC
Current:
Customizable
Application:
HVAC Blower Motor
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

30a motor thermal protector

,

30a motor thermal protection switch

,

cutoff motor thermal protector

Product Description
HC02 High Precision Motor Overload Protector 1-30A 60-180°C Thermal Cutoff Switch RoHS/UL Certified for HVAC Blower Motor
Product Specifications
Attribute Value
Product name HC02 motor thermal protector
Material Plastic case
Temperature range 60~180℃
Tolerance ±8℃,±10℃
Voltage 250V AC/30V DC
Current Customizable
Application HVAC Blower Motor
Product Overview

HC02 series thermal overload relays deliver dual-protection through temperature-sensitive bimetal snap action and current-responsive mechanisms. Engineered for demanding applications including:

  • Automotive: Power window motors, sunroof drives, windshield wiper systems
  • HVAC: Blower motors, compressor units, ventilation fans
  • Industrial: Conveyor belt motors, pump drives, automation equipment
Key Features
  • Dual Sensing Technology
    Bimetal and heating wire work in tandem to simultaneously monitor temperature rise and current anomalies
  • Rapid Trip Mechanism
    Patented quick trip mechanism responds to blocking currents in 4-10 seconds, preventing overheating and damage to motor windings.
  • Application-specific customizations
    • Automotive: Vibration proof design, heat and humidity tested to 85°C/85%RH.
    • Industrial: Optional dustproof enclosure and remote reset capability
    • Specialized temperature calibration: Supports extreme environments from -40°C to 220°C.
Electrical Characteristics
60℃~170℃

Operating temperature range, Customizable temperature.

4S~10S

Special action time can be customized

±8°C, ±10℃

Temperature Tolerance

1A~30A

The overload current tripping range can be customized according to customer's requirements.

Electrical characteristics:

1~30amps/15 volts DC | 1~15amps/250 volts AC

1~15amps/30 volts DC | 1~30amps/125 volts AC

Product Dimensions
HC02 High Precision Motor Overload Protector 1-30A 60-180°C Thermal Cutoff Switch RoHS/UL Certified for HVAC Blower Motor 0
Product Details
HC02 High Precision Motor Overload Protector 1-30A 60-180°C Thermal Cutoff Switch RoHS/UL Certified for HVAC Blower Motor 1
Typical Applications
HC02 High Precision Motor Overload Protector 1-30A 60-180°C Thermal Cutoff Switch RoHS/UL Certified for HVAC Blower Motor 2
