Motor Thermal Protector
Created with Pixso. HC02 Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch RoHS Compliant Over-Current Protector for Cooling Fan Motor
Name
  • Name
  • Name
  • Name

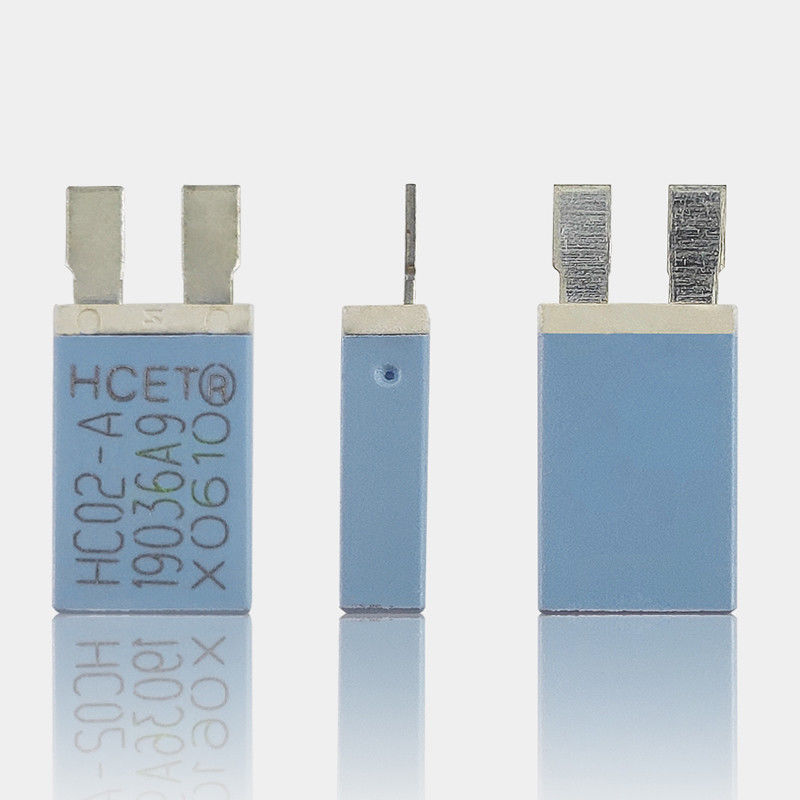

HC02 Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch RoHS Compliant Over-Current Protector for Cooling Fan Motor

Brand Name: HCET
Model Number: HC02-A
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL, ROHS
Document:
HC02.pdf
Product Name:
HC02 Motor Thermal Protector
Material:
Plastic Case
Temperature Range:
60~180℃
Tolerance:
±8℃,±10℃
Voltage:
250V AC/30V DC
Current:
Customizable
Application:
Cooling Fan Motor
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

30a motor thermal protector

,

30a motor thermal protection switch

,

cutoff motor thermal protector

Product Description
HC02 Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch
Product Attributes
Attribute Value
Product name HC02 motor thermal protector
Material Plastic case
Temperature range 60~180℃
Tolerance ±8℃,±10℃
Voltage 250V AC/30V DC
Current Customizable
Application Cooling Fan Motor
Product Description

The HCET HC02 Bimetal Motor Overload Protector is a high-precision dual-protection device designed to safeguard motors and transformers from overheating, overcurrent, and short circuits. Engineered with advanced bimetal technology, it offers reliable thermal and electrical protection for automotive systems (sunroofs, window lift motors, wipers) and industrial equipment (pumps, fans, HVAC).

Key Features
  • Precision Protection: Bimetal snap-action mechanism ensures fast response to overload (4-10s) and overheating, preventing motor burnout.
  • Wide Current Range: Covers 1-30A (DC) and 1-15A (AC), suitable for low-power to heavy-duty motors.
  • Built for Reliability: Flame-retardant housing resists thermal deformation up to 150°C with 30,000+ cycle lifespan.
  • Flexible Integration: Custom terminals (blade, screw, or wire leads) for seamless PCB/panel mounting.
  • Global Compatibility: 15-250V support meets EU, NA, and Asian market standards.
  • Cost-Effective: Reduces motor replacement costs by 80% in automotive and industrial systems.
Electrical Characteristics
Operating Temperature Range
60℃~170℃ (Customizable)
Action Time
4S~10S (Customizable)
Temperature Tolerance
±8°C, ±10℃
Overload Current Range
1A~30A (Customizable)
Electrical Specifications
1~30amps/15 volts DC | 1~15amps/250 volts AC
1~15amps/30 volts DC | 1~30amps/125 volts AC
Dimensions
HC02 Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch RoHS Compliant Over-Current Protector for Cooling Fan Motor 0
Detailed dimension diagram of HC02 Motor Overload Protector
Product Details

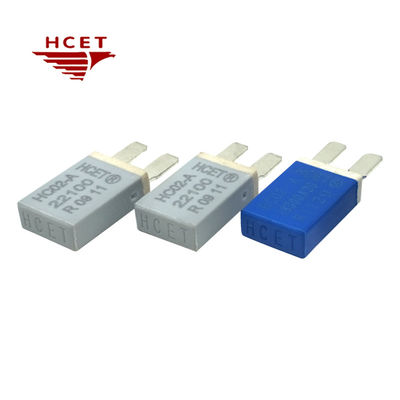

HC02 Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch RoHS Compliant Over-Current Protector for Cooling Fan Motor 1
Detailed view of HC02 Motor Overload Protector components
Application Examples
HC02 Motor Overload Protector 1-30A Adjustable Thermal Cutoff Switch RoHS Compliant Over-Current Protector for Cooling Fan Motor 2
HC02 Motor Overload Protector installed in cooling fan motor application
