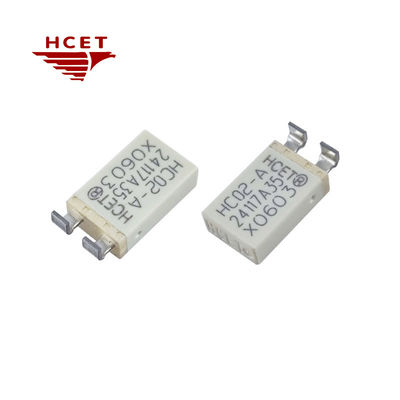

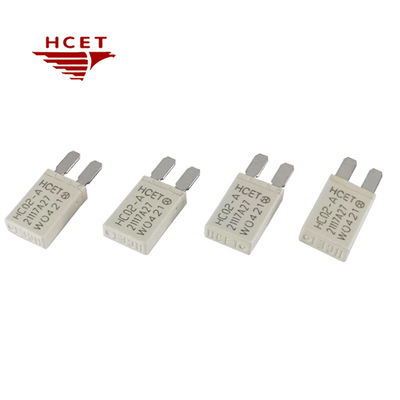

HC02 Bimetal Thermal Overload Protector Otter PB G Replacement 1-30A Thermal Cutoff for Electric door lock motor

Name: HC02 Bimetal Thermal Overload Protector Otter PB G Replacement 1-30A Thermal Cutoff for Electric door lock motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-A
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Electric Door Lock Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

30a motor thermal protector

Product Description

HC02 Bimetal Thermal Overload Protector Otter PB G Replacement 1-30A Thermal Cutoff for Electric door lock motor

The HC02 Bimetal Overload Protector is a high-precision, dual-sensing device designed to safeguard motors and transformers from overheating,

overcurrent, and short circuits. Engineered to replace Otter PB G series protectors, it combines temperature and current sensitivity for superior

reliability in automotive, industrial, and HVAC applications. With customizable trip currents (1-30A) and fast response times (4-10s), the HC02 ensures

critical equipment like car window lift motors, wiper systems, and industrial pumps operate safely under extreme conditions. Its compact,

RoHS-compliant design meets global standards for durability and environmental safety, making it the ideal choice for OEMs seeking cost-effective,

high-performance thermal protection.

Product feature:

Precision Dual Protection
- Temperature Sensitivity**: 60°C–180°C (±8°C/±10°C tolerance) with 5°C increments.
- Current Sensitivity**: Adjustable trip range (1-30A) for tailored motor protection.
Fast-Acting & Reliable
- 4-10 Second Trip Time prevents motor burnout during overloads, stalls, or voltage spikes.
High-Temperature Resilience
- Heat-resistant polymer housing withstands harsh environments (automotive engine bays, industrial machinery).
Global Compliance & Durability
- RoHS-certified, lead-free components meet EU/US environmental regulations.
- 30,000+ cycle lifespan ensures long-term reliability.
Multi-Industry Applications
- Automotive: Window lift motors, wiper systems, sunroof actuators.
- HVAC: Fan motors, compressor units.
- Industrial: Pumps, conveyors, power tools.
Customization Options
- Terminal types, trip settings, and housing materials tailored to OEM specifications.

Electrical Characteristics:

60℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HC02 Bimetal Thermal Overload Protector Otter PB G Replacement 1-30A Thermal Cutoff for Electric door lock motor 0

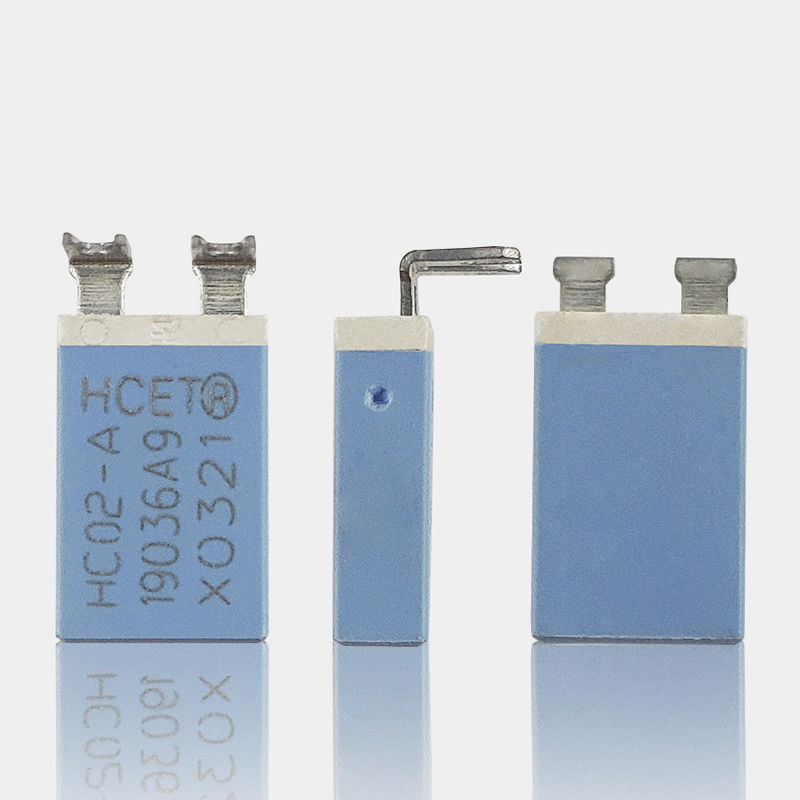

Product detail

HC02 Bimetal Thermal Overload Protector Otter PB G Replacement 1-30A Thermal Cutoff for Electric door lock motor 1

Application

HC02 Bimetal Thermal Overload Protector Otter PB G Replacement 1-30A Thermal Cutoff for Electric door lock motor 2
