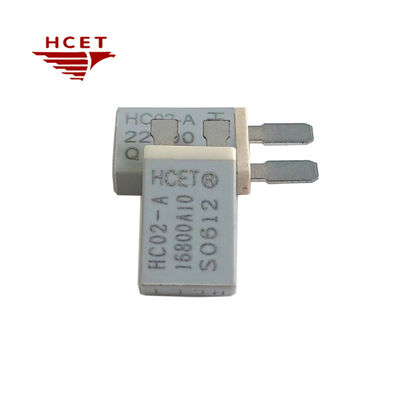

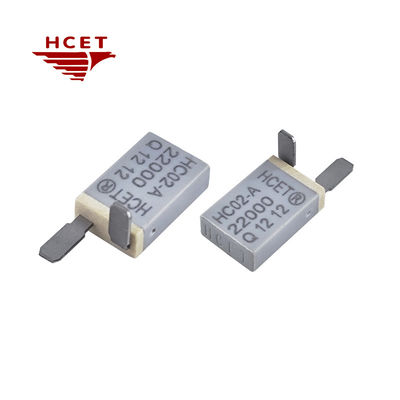

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Mirror Adjustment Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

30a motor thermal protector

Product Description

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror Adjustment Motor with UL and RoHS Certified

Product Specifications

Attribute	Value
Product name	HC02 motor thermal protector
Material	Plastic case
Temperature range	60~180℃
Tolerance	±8℃,±10℃
Voltage	250V AC/30V DC
Current	Customizable
Application	Mirror adjustment motor

Product Description

The HCET HC02 Bimetal Motor Overload Protector is a precision-engineered thermal protection solution designed for DC/AC motors in automotive and industrial applications. This dual-metal protector offers reliable overload and overheating prevention with customizable trip currents (1-30A) and rapid response time (4-10s), ensuring optimal motor lifespan under extreme conditions.

Key Features

Precision Protection - Dual-metal snap-action mechanism ensures accurate temperature and current monitoring.
Extended Durability - 30,000+ operation cycles with high-temperature resistant polymer housing.
Multi-Industry Adaptability - Compatible with 12V/24V automotive systems and 110-240V industrial motors.
Customizable Solutions - Tailored trip settings and terminal configurations for OEM requirements.
Global Compliance - Manufactured under ISO standards with full RoHS documentation.

Electrical Characteristics

60℃~170℃

Operating temperature range, Customizable temperature

4S~10S

Special action time can be customized

±8°C, ±10℃

Temperature Tolerance

1A~30A

The overload current tripping range can be customized according to customer's requirements

Electrical characteristics

1~30amps/15 volts DC | 1~15amps/250 volts AC

1~15amps/30 volts DC | 1~30amps/125 volts AC

Dimensions

Detailed dimension specifications

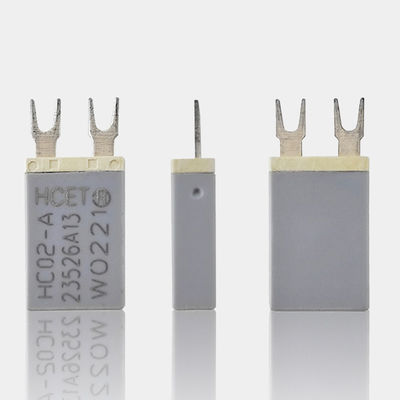

Product Details

Detailed component view

Application

Typical application in mirror adjustment motor
