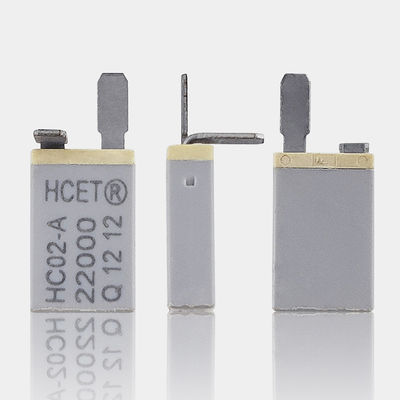

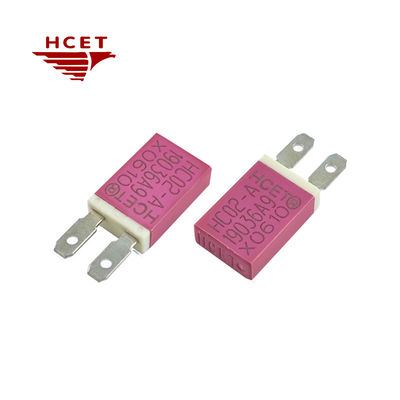

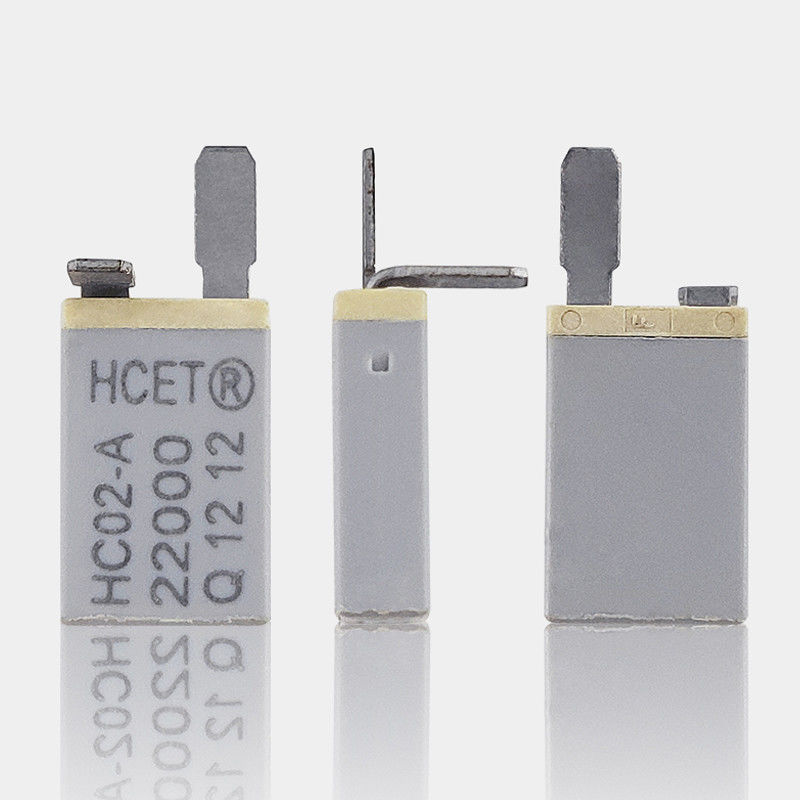

HC02 Bimetal Motor Overload Protector High-current Thermal Cutoff Switch Replace Otter For Sunroof Drive Motor

HC02 Bimetal Motor Overload Protector High-current Thermal Cutoff Switch Replace Otter For Sunroof Drive Motor

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Sunroof Drive Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

cutoff motor thermal protector

Product Description

HC02 Bimetal Motor Overload Protector

High-current Thermal Cutoff Switch for Sunroof Drive Motors

Product Name HC02 motor thermal protector

Material Plastic case

Temperature Range 60~180℃

Tolerance ±8℃,±10℃

Voltage 250V AC/30V DC

Current Customizable

Product Overview

The HCET HC02 Bimetal Motor Overload Protector is a precision-engineered thermal cutoff switch designed to safeguard motors and transformers from overheating, overcurrent, and short circuits. Built with a high-temperature-resistant polymer shell and bimetal snap-action technology, it offers reliable protection for automotive, industrial, and HVAC systems.

Key Features

Dual-Metal Precision Protection: Detects both overload current (1-30A) and excessive temperature (60°C-180°C ±8°C) to prevent motor burnout.
Fast-Acting Safety: Triggers in 4-10 seconds under overload conditions, minimizing downtime and equipment damage.
Wide Compatibility: Works with DC motors (15V/30A) and AC systems (125V/30A, 250V/15A). Ideal for automotive 12V/24V circuits.
Robust Construction: High-temperature polymer housing withstands harsh environments (e.g., engine bays, industrial machinery).

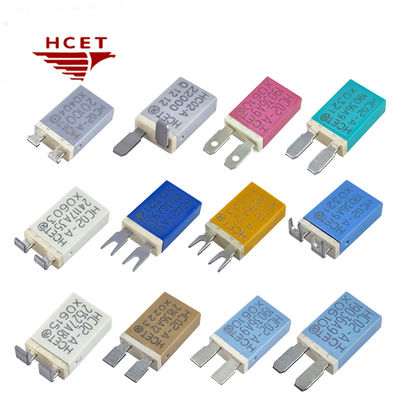

Customizable Solutions: Tailor trip currents, temperature thresholds, and terminal types (fast-on, solder tab, or wire lead).

Electrical Characteristics

Operating Temperature Range	60℃~170℃ (Customizable)
Action Time	4S~10S (Customizable)
Temperature Tolerance	±8°C, ±10℃
Overload Current Tripping Range	1A~30A (Customizable)
Electrical Specifications	1~30amps/15 volts DC 1~15amps/250 volts AC 1~15amps/30 volts DC 1~30amps/125 volts AC
