HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor

Name: HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-A
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Window Lifting Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

30a motor thermal protector

Product Description

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor

The HCET HC02 Series is an advanced bimetal thermal cutoff switch engineered to safeguard motors from catastrophic failure caused by

overloads, locked rotors, or overheating. With customizable trip currents up to 30A and rapid 4-10s response time, it delivers automotive-grade

reliability for mission-critical applications.

Product feature:

Dual Protection Technology
Simultaneously monitors temperature (60-180℃ ±8℃) and current anomalies - exceeds IEC 60947-4 standards
Automotive Proven Performance
PBT housing withstands vibration, moisture, and -40°C to 200°C extremes in wiper systems, sunroof motors, and EV components
Flexible Customization
Tailor trip parameters, terminal types (quick-connect/spade), and mounting configurations for HVAC compressors, industrial pumps, or home appliances
Zero False Trips
Patented bimetal snap-action mechanism ensures <0.1% failure rate through 30,000+ cycle testing

Electrical Characteristics:

60℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

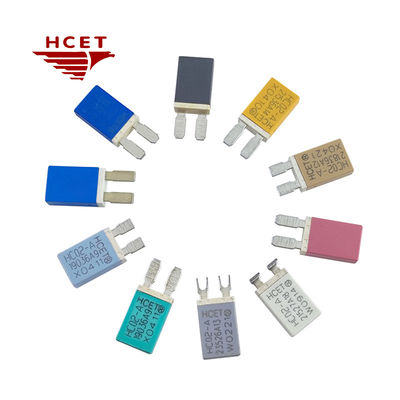

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor 0

Product detail

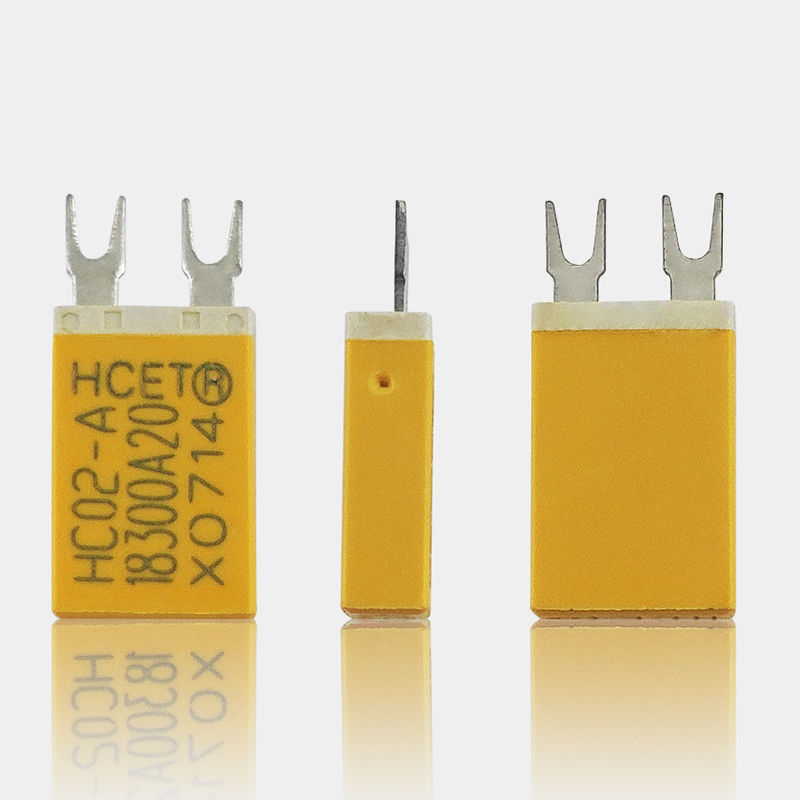

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor 1

Application

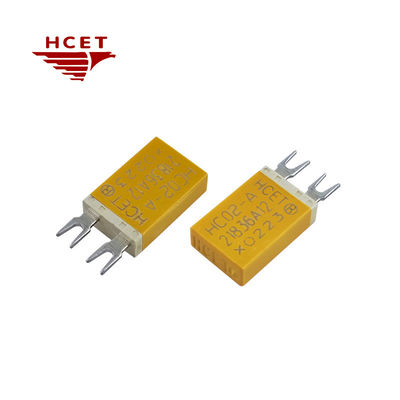

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor 2
