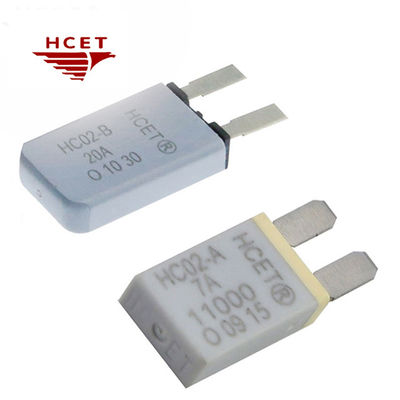

HC02 22100 Series Bimetal Thermal Overload Protector High-Temperature Motor Circuit Breaker with Adjustable Trip Current 1-30A

Name: HC02 22100 Series Bimetal Thermal Overload Protector High-Temperature Motor Circuit Breaker with Adjustable Trip Current 1-30A
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-A
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 22100 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Pedal Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

30a motor thermal protector

Product Description

HC02 22100 Series Bimetal Thermal Overload Protector High-Temperature Motor Circuit Breaker with Adjustable Trip Current 1-30A

The HCET HC02 Series Bimetal Thermal Overload Protector is a precision-engineered solution for safeguarding motors and transformers

against overheating, overload, and short circuits. Designed to replace OTTER series protectors, this compact and durable device combines

dual-metal thermal sensing with advanced current sensitivity, ensuring reliable protection in demanding environments.

Product feature:

Dual-Sensing Technology
Simultaneously monitors temperature rise and current overload, offering multi-layered protection against motor failure.
Industry-Leading Customization
Tailor trip parameters (temperature/current) to match OEM specifications—ideal for automotive, industrial, and smart home applications.
Space-Saving & Easy Installation
Miniaturized design (20% smaller than competitors) saves panel space while supporting high-density PCB layouts.
Global Market Readiness
Tested to UL/IEC standards, ensuring compliance with EU, North American, and Asian safety regulations.

Electrical Characteristics:

60°℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HC02 22100 Series Bimetal Thermal Overload Protector High-Temperature Motor Circuit Breaker with Adjustable Trip Current 1-30A 0

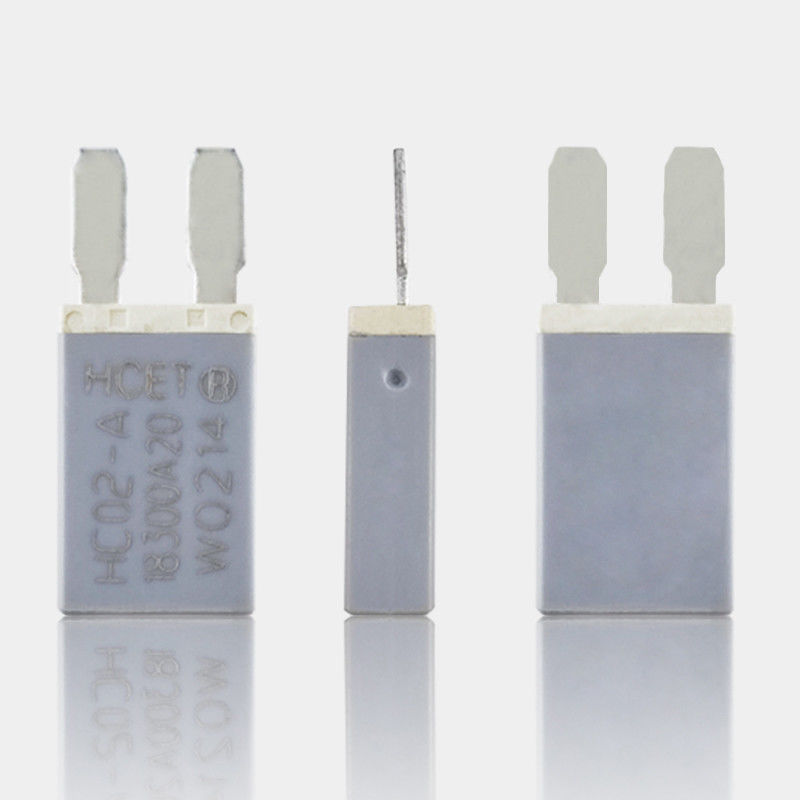

Product detail

HC02 22100 Series Bimetal Thermal Overload Protector High-Temperature Motor Circuit Breaker with Adjustable Trip Current 1-30A 1

Application

HC02 22100 Series Bimetal Thermal Overload Protector High-Temperature Motor Circuit Breaker with Adjustable Trip Current 1-30A 2
