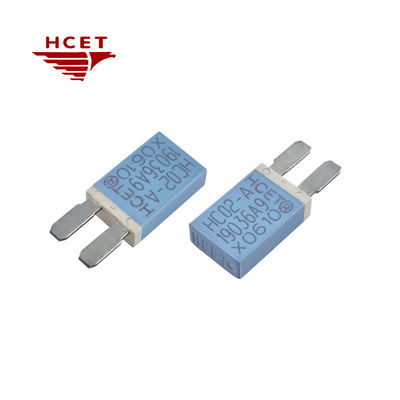

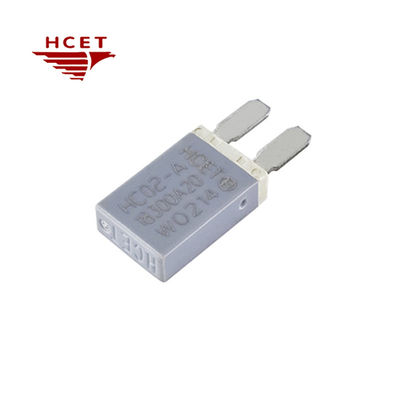

HC02 Bimetal Motor Thermal Protector Automotive Wiper Motor Thermal Cutoff Switch RoHS-Certified Overload Protector

Name: HC02 Bimetal Motor Thermal Protector Automotive Wiper Motor Thermal Cutoff Switch RoHS-Certified Overload Protector
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC02-A
Availability: InStock

Brand Name:	HCET
Model Number:	HC02-A
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS

Document:

HC02.pdf

Product Name:

HC02 Motor Thermal Protector

Material:

Plastic Case

Temperature Range:

60~180℃

Tolerance:

±8℃,±10℃

Voltage:

250V AC/30V DC

Current:

Customizable

Application:

Wiper Motor

Packaging Details:

20000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

bimetal motor thermal protector

bimetal motor thermal protection switch

wiper motor thermal protector

Product Description

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors

The HC02 series is a precision-engineered bimetal thermal protector designed to safeguard motors and transformers from overheating,

overload, and short-circuit failures. Certified to RoHS standards, this high-temperature-resistant protector combines dual-sensitivity

(temperature & current) for reliable protection in automotive, industrial, and HVAC applications. Compatible with wiper motors, sunroof actuators,

sliding door motors, and more, it offers customizable trip currents (1-30A) and terminals to meet OEM requirements. Engineered to replace OTTER

switches, the HC02 ensures a fast trip response (4-10 seconds) and extended service life under 250V AC/30V DC conditions.

Product feature:

Dual-Sensitivity Protection
- Detects both temperature (60°C-180°C ±8°C) and overcurrent (1-30A) for comprehensive motor protection.
- Ideal for automotive applications (wipers, windows, sunroofs) and industrial equipment.
Fast-Acting & Precision
- 4-10 second trip time prevents motor burnout during stalls or overloads.
- ±8°C temperature tolerance ensures stable performance in extreme environments.
Customizable Solutions
- Adjustable trip current (1-30A) and terminal configurations for seamless integration.
- Replace OTTER switches with identical form factor and enhanced durability.
High-Temperature Resilience
- Reinforced thermoplastic housing withstands continuous 200°C operation.
- Rated for 250V AC/30V DC, suitable for heavy-duty motors and transformers.
Global Compliance & Reliability
- RoHS-certified materials meet EU/US environmental standards.
- 100,000+ cycle lifespan ensures long-term cost efficiency.

Electrical Characteristics:

60°℃~170℃ Operating temperature range, Customizable temperature.	4S~10S Special action time can be customized
±8°C, ±10℃ Temperature Tolerance	1A~30A The overload current tripping range can be customized according to customer's requirements.

1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HC02 Bimetal Motor Thermal Protector Automotive Wiper Motor Thermal Cutoff Switch RoHS-Certified Overload Protector 0

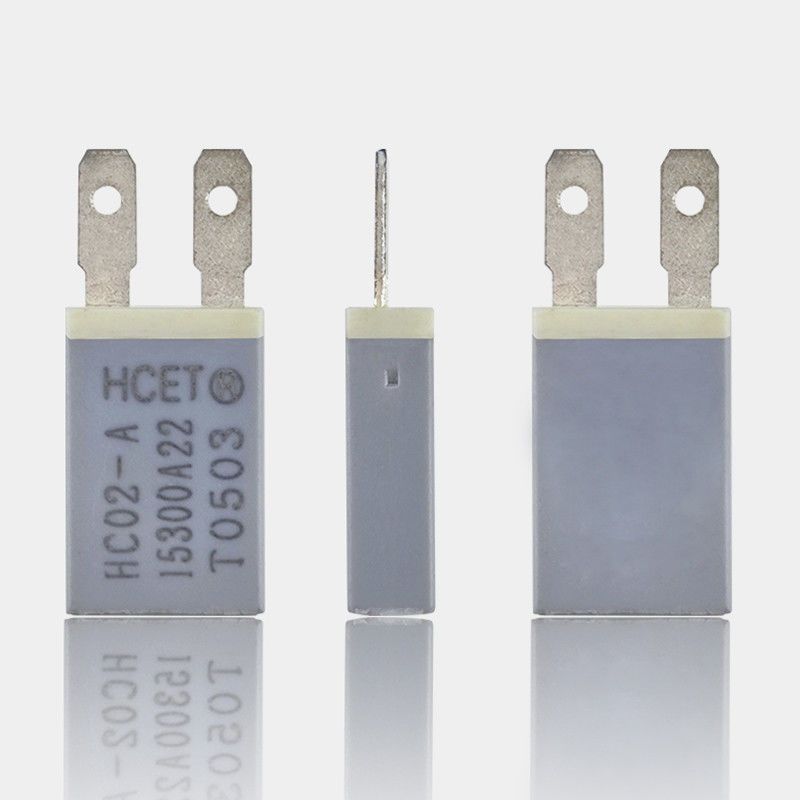

Product detail

HC02 Bimetal Motor Thermal Protector Automotive Wiper Motor Thermal Cutoff Switch RoHS-Certified Overload Protector 1

Application

HC02 Bimetal Motor Thermal Protector Automotive Wiper Motor Thermal Cutoff Switch RoHS-Certified Overload Protector 2
