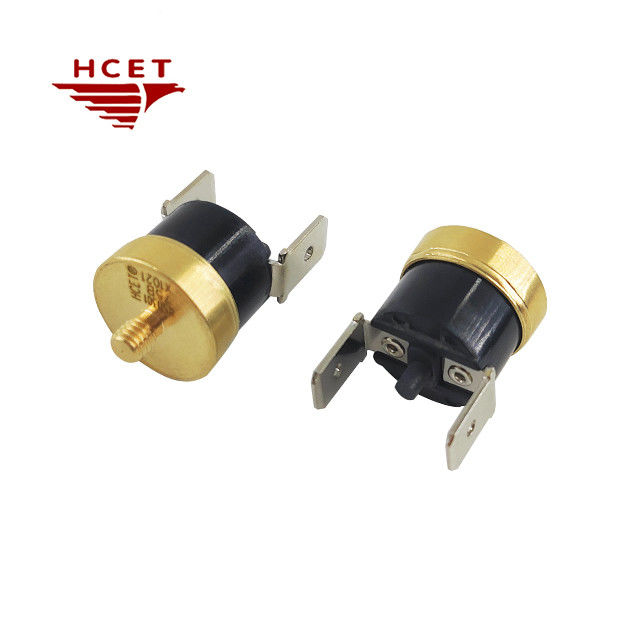

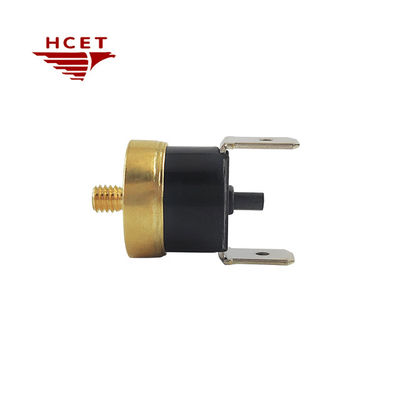

M4 KSD301 10A 250V Thermal Cut Off Switch Protector For LED Lighting

Name: M4 KSD301 10A 250V Thermal Cut Off Switch Protector For LED Lighting
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: KSD301/HC301
Availability: InStock

Brand Name:	HCET
Model Number:	KSD301/HC301
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, TUV, CE

Document:

HC301.pdf

Product Name:

KSD301 Thermal Switch

Material:

Ceramic Or Bakelite Body

Temperature Range:

-10~280℃

Tolerance:

±3℃,±5℃

Voltage:

125V/250V AC

Current:

10A/16A

Application:

LED Lighting

Packaging Details:

2000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

ksd301 10a Protector

ksd301 10a Cut Off Switch

ksd301 250v10a Cut Off Switch

Product Description

M4 KSD301 10A 250V Thermal Cut Off Switch Protector For LED Lighting

Product Specifications

Attribute	Value
Product name	KSD301 Thermal Switch
Material	Ceramic or Bakelite body
Temperature range	-10~280℃
Tolerance	±3℃,±5℃
Voltage	125V/250V AC
Current	10A/16A
Application	LED Lighting

Product Overview

The HCET KSD301 is a precision-engineered bimetallic thermal cutoff switch designed for reliable temperature control in demanding industrial applications. This vertical thermostat features a robust brass housing with silver alloy contacts for optimal performance in LED lighting systems and other critical equipment.

Key Features

Fail-Safe Overload Protection Dual-action snap disc ensures instant circuit break at ±5°C accuracy, preventing motor burnout and energy waste.
Industrial-Grade Durability Aluminum-copper composite construction withstands 10,000+ cycles at 16A/250VAC, certified for continuous operation in -10°C to 280°C ambient temperatures.
Global Compliance Ready Pre-certified to UL 60730, IEC 60691, and EN 60335-1, simplifying integration into US/EU markets for appliances and OEM equipment.
Space-Saving Design Compact 15mm profile with M4 screw terminals allows vertical PCB mounting, ideal for motor end caps and tight industrial enclosures.
Customizable Settings Optional factory calibration from -10°C to 280°C (±5°C tolerance) with manual reset variants available for critical safety systems.

Electrical Characteristics

Temperature range: -10℃~300℃

Temperature tolerance: ±3℃, ±5℃

Electrical specifications: 12VDC/24VDC:10A~15A; 125VAC/250VAC:10A~16A
