High Precision KSD301 125V 250V 16A Bimetal Disc Thermostat Thermal Protector Switch

Name: High Precision KSD301 125V 250V 16A Bimetal Disc Thermostat Thermal Protector Switch
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: KSD301/HC301
Availability: InStock

Brand Name:	HCET
Model Number:	KSD301/HC301
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, TUV, CE

Document:

HC301.pdf

Product Name:

KSD301 Bimetallic Thermostat Thermal Switch

Material:

Ceramic Or Bakelite Body

Temperature Range:

-10~280℃

Tolerance:

±3℃,±5℃

Voltage:

125V/250V AC

Current:

10A/16A

Application:

Motor Transformer Protection

Packaging Details:

2000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

ksd301 125v Protector

ksd301 125v Disc Thermostat

ksd301 125v 16a Protector

Product Description

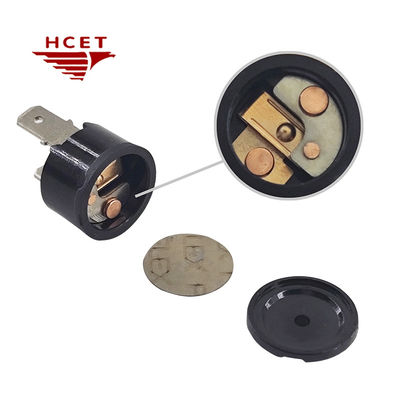

High Precision KSD301 125V 250V 16A Bimetal Disc Thermostat Thermal Protector Switch

Product Specifications

Attribute	Value
Product name	KSD301 Bimetallic Thermostat Thermal Switch
Material	Ceramic or Bakelite body
Temperature range	-10~280℃
Tolerance	±3℃,±5℃
Voltage	125V/250V AC
Current	10A/16A
Application	Motor Transformer Protection

Product Description

HCET's KSD301 Bimetal Thermostat is a precision-engineered temperature control device designed to provide reliable overheat protection in various industrial applications. This thermal protector switch features a bimetal mechanism that automatically opens or closes circuits in response to temperature changes, ensuring safe equipment operation.

Key Features

Precise temperature control: Adjustable bimetal mechanism (±5°C accuracy) with wide operating range (-20°C to 280°C)
Global compliance: CE/RoHS certified, meeting EU safety and environmental standards
Durable construction: Hermetically sealed design protects against dust and moisture
High current capacity: Handles up to 16A at 250V AC for heavy equipment
Long service life: Bimetallic snap-action technology ensures 100,000+ duty cycles
Customizable: Available with various terminal types and mounting options

Electrical Characteristics

Temperature range	-10℃~300℃
Temperature tolerance	±3℃, ±5℃
Electrical specifications	12VDC/24VDC: 10A~15A 125VAC/250VAC: 10A~16A

Product Details

Applications

Ideal for use in HVAC systems, medical equipment, coffee machines, compressors, pumps, and various industrial machinery requiring reliable thermal protection.
