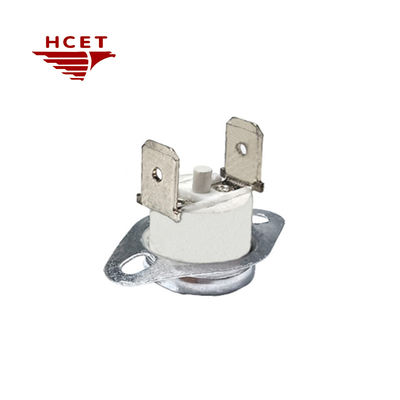

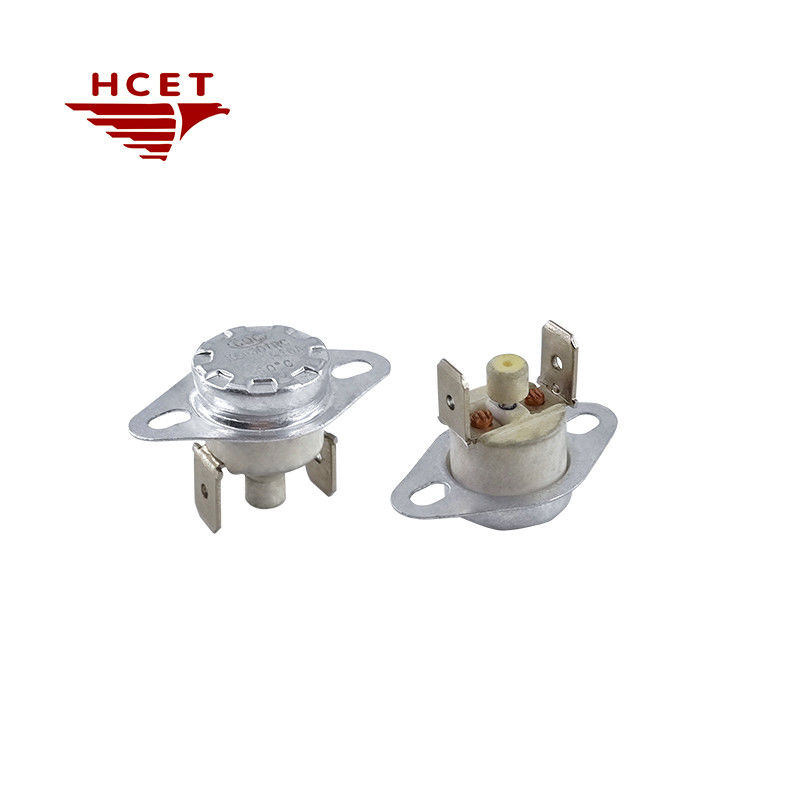

HCET KSD301 Bimetal Thermostat 250V 16A with Auto/Manual Reset Ceramic Bakelite Body Thermal Switch for Power Supply Adapter

The HCET KSD301 Bimetal Thermostat is a high performance temperature control switch designed for precision thermal management

in demanding environments. It utilizes a bimetal mechanism that automatically detects temperature changes and cuts the circuit at a

preset threshold (10A-16A, 250V AC), then resets automatically or manually after cooling. The rugged ceramic housing ensures insulation

up to 300°C, making it ideal for automotive heating systems (e.g., power seats, defrosters), industrial equipment, and household appliances

such as coffee makers or water heaters. It is certified to UL, CE and RoHS standards, ensuring compliance with global safety and environmental regulations.

Product feature:

• Dual reset mode
  Flexible auto reset or manual reset options meet critical safety requirements.
• High Current Capacity
  16A/250V AC current rating supports heavy-duty heating elements in automotive and HVAC systems.
• Wide temperature range
  Adjustable trip points from -20°C to 280°C (±5% accuracy) meet a variety of thermal protection needs.
• Durable ceramic construction
  Bakelite/ceramic housing resists heat, corrosion, and arcing to ensure 100,000+ cycle life.
• Global Approvals
  UL, CE, and RoHS compliant, meeting EU/US market access standards.
• Compact and easy to install
  Standard blade terminals (4.8/6.3 mm) simplify integration into existing circuits.

Electrical Characteristics:

Product detail

Application
