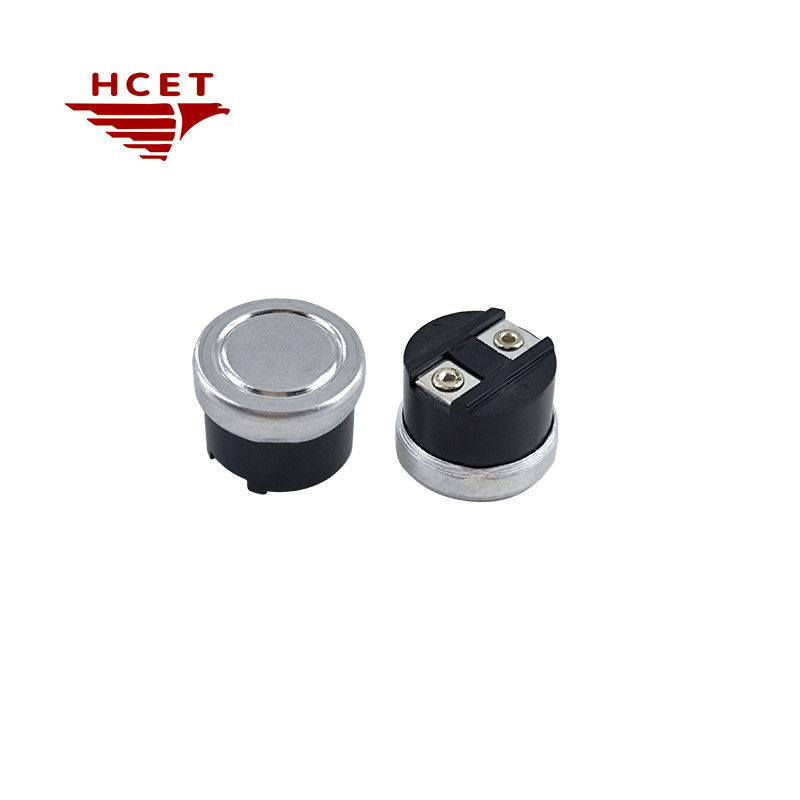

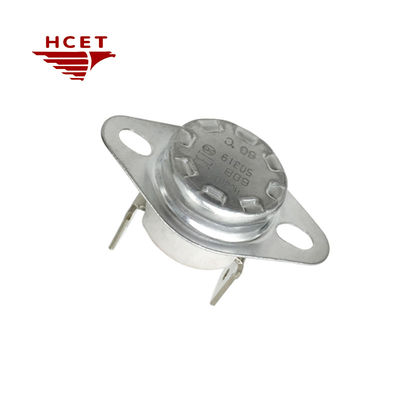

HCET KSD301 Bimetallic Thermal Switch Precision Thermostat 80C Temperature Control Switch for Water Cooler and Dispenser

The HCET KSD301 is a bimetallic thermostat designed to provide precision thermal protection for multiple industries.

The thermostat utilizes fast-acting bimetal technology that activates at a preset temperature (adjustable range: -20°C to 250°C) to

prevent equipment damage due to overheating or dry firing. It utilizes silver-nickel alloy contacts to ensure 100,000+ operating cycles

and 16A 250V AC/DC capacity, and is UL, CE, and RoHS certified for the global market. Ideal for coffee makers, water heaters,

motor protection and medical sterilization equipment, it ensures reliable performance in humid or dusty environments.

Product feature:

• Multi-industry compatibility
  Works perfectly in household appliances (irons, kettles), industrial machinery (pumps, compressors) and medical equipment.
• Enhanced Safety Construction
  Three-layer arc suppression design prevents contact welding, critical for high-current applications with inrush currents up to 16A.
• Environmental Resilience
  Bakelite or ceramic housings can be customized to withstand ambient temperatures from -20°C to 280°C and 80% relative humidity.
• Customizable startup
  ±3°C temperature accuracy with optional manual reset for safety critical systems.
• Quick Connect Terminals
  4.8/6.3mm quick connect terminals support tool-less installation and are compatible with automated production line requirements.

Electrical Characteristics:

Product detail

Application
