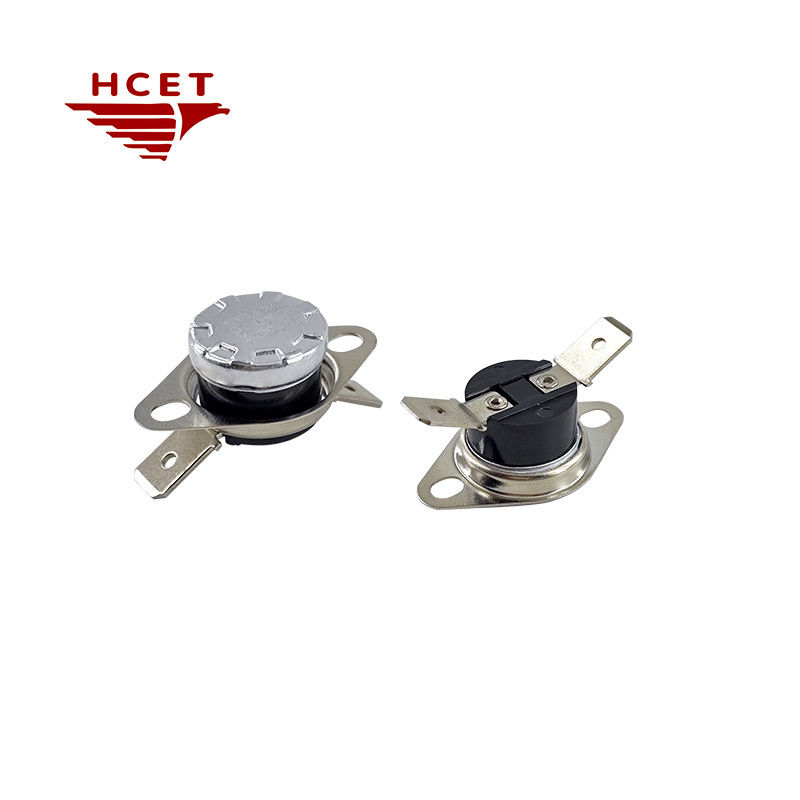

RoHS KSD301 Bimetal Thermal Switch Thermostat 125V 16A 148C Cut Off For Water Heaters

RoHS KSD301 Bimetal Thermal Switch Thermostat 125V 16A 148C Cut Off For Water Heaters

Brand Name:	HCET
Model Number:	KSD301/HC301
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, TUV, CE

Document:

HC301.pdf

Product Name:

KSD301 Bimetal Thermal Switch

Material:

Ceramic Or Bakelite Body

Temperature Range:

-10~280℃

Tolerance:

±3℃,±5℃

Voltage:

250V AC

Current:

10A/16A

Application:

Water Heaters

Packaging Details:

2000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Cut Off KSD301 Thermal Switch

KSD301 Thermal Switch 148C

ksd301 125v 16a 148c

Product Description

RoHS KSD301 Bimetal Thermal Switch Thermostat 125V 16A 148°C Cut Off For Water Heaters

Product Specifications

Attribute	Value
Product name	KSD301 Bimetal Thermal Switch
Material	Ceramic or Bakelite body
Temperature range	-10~280℃
Tolerance	±3℃,±5℃
Voltage	250V AC
Current	10A/16A
Application	Water Heaters

Product Overview

HCET RoHS KSD301 Bimetal Thermal Switch Thermostat Adjustable 120°C Cut-off Switch for Water Heaters

As a classic solution in the field of bimetallic temperature control, HCET KSD301 series thermostat adopts precision bimetallic disc technology, which allows customizable ±3℃ high-precision temperature control in the range of -20℃ to 280℃. The product is triple certified by UL, CE, and RoHS, supports a load capacity of up to 16A/250V, and its snap-action disconnect mechanism effectively prevents arcing, making it especially suitable for coffee makers, water dispensers, charging piles, and other devices that require frequent temperature cycling.

Key Features

Multi-scenario adaptable design - By adjusting the curvature of bimetallic disc and contact material, the temperature set point (-20 - 250℃) can be customized to meet the needs of different scenarios, such as overheating protection for coffee machines and temperature monitoring for electric vehicle charging piles.
Enhanced Electrical Performance - Silver nickel alloy contacts with ceramic base maintain >100,000 cycles of mechanical life under 16A/250V operating conditions, with a contact resistance of ≤50mΩ.
Enhanced environmental resistance - Adopting flame-retardant shell and imported spring sheet, passing 85℃/85%RH 1000 hours salt spray test, suitable for kitchen appliances, outdoor lighting equipment and other harsh environments.

Electrical Characteristics

Temperature range:	-10℃~300℃
Temperature tolerance:	±3℃, ±5℃
Electrical specifications:	12VDC/24VDC:10A~15A 125VAC/250VAC:10A~16A
