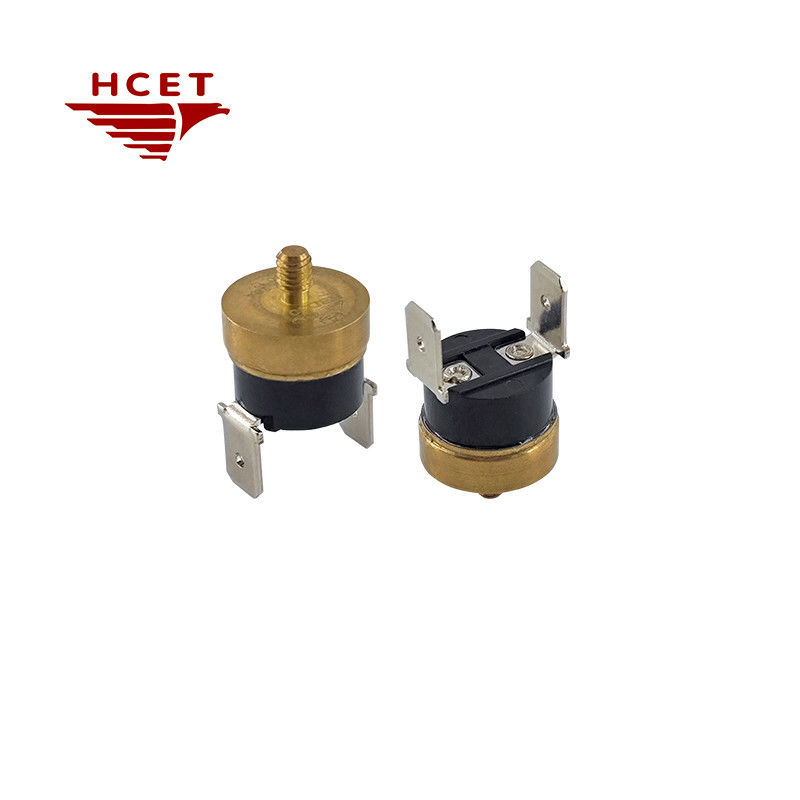

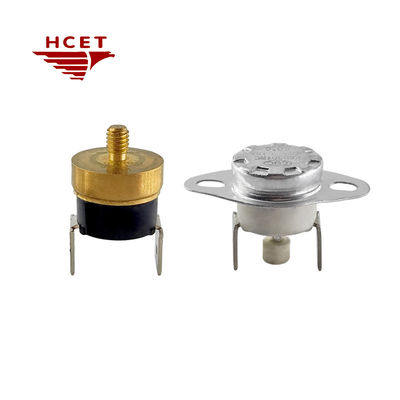

Ceramic Thermal KSD301 Switch Thermostat 16A 250V 90°C NC NO

Ceramic Thermal KSD301 Switch Thermostat 16A 250V 90°C NC NO

Brand Name:	HCET
Model Number:	KSD301/HC301
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, TUV, CE

Document:

HC301.pdf

Product Name:

KSD301 M4 Bimetal Thermal Switch

Material:

Ceramic Or Bakelite Body

Temperature Range:

-10~280℃

Tolerance:

±3℃,±5℃

Voltage:

250V AC

Current:

10A/16A

Application:

Ovens Temperature Protection

Packaging Details:

2000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

NC NO ksd301 switch

Ceramic ksd301 switch

NC NO ksd301 thermostat

Product Description

Ceramic Thermal KSD301 Switch Thermostat 16A 250V 90°C NC NO

Product Specifications

Attribute	Value
Product name	KSD301 M4 Bimetal Thermal Switch
Material	Ceramic or Bakelite body
Temperature range	-10~280℃
Tolerance	±3℃,±5℃
Voltage	250V AC
Current	10A/16A
Application	Ovens Temperature Protection

Product Description

The KSD301 Thermal Switch is a precision-engineered snap-action bimetal thermostat designed for critical temperature control in high-current environments. It utilizes a calibrated bimetal that automatically opens the circuit at 90°C (±5°C tolerance) and resets when the temperature drops to the set temperature, ensuring fail-safe protection for 16A/250VAC systems. This NC (normally closed) device features corrosion-resistant M4 screw terminals for reliability in demanding applications.

Key Features

Cross-industry voltage durability - 16A operating current in 250VAC systems, 50Hz/60Hz grid-approved to serve OEM customers worldwide.
Military-Grade Startup Accuracy - Bimetal repeatability after 100,000 cycles to ±3°C customized accuracy, better than ±5°C industry standard for medical sterilizer applications.
Vibration-proof M4 locking - Customized M4 threaded fittings with brass terminals prevent loosening during installation in automotive engine compartments.
Wide temperature range - Customized -20°C to +280°C operating temperature range.

Electrical Characteristics

Temperature range	-10℃~300℃
Temperature tolerance	±3℃, ±5℃
Electrical specifications	12VDC/24VDC:10A~15A 125VAC/250VAC:10A~16A
