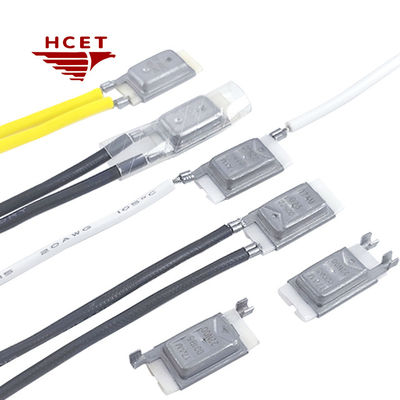

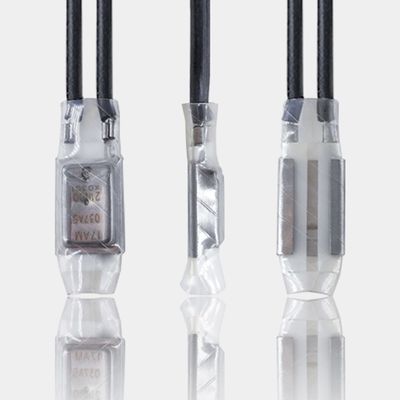

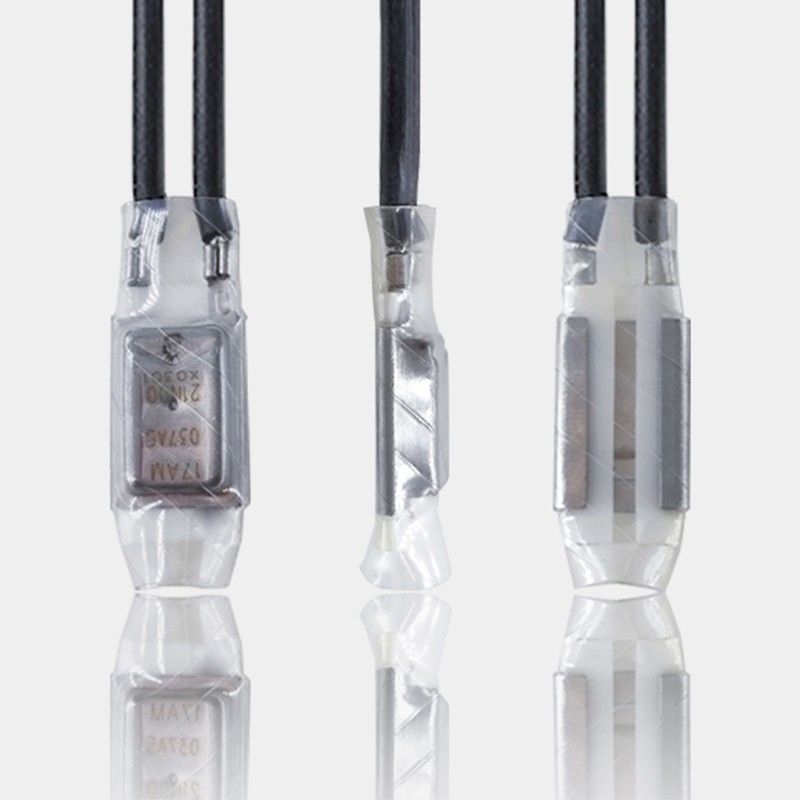

Bimetal Motor 17AM Thermal Protector High Temp Cutout Switch 250V

Name: Bimetal Motor 17AM Thermal Protector High Temp Cutout Switch 250V
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: 17AM
Availability: InStock

Brand Name:	HCET
Model Number:	17AM
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, ROHS, TUV, CE

Product Name:

17AM Thermal Protector

Temperature Range:

50~180℃

Tolerance:

±3℃,±5℃

Voltage:

250V

Current:

<10A

Material:

Metal

Application:

Pump Motor

Feature:

Snap Action Switch

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Bimetal 17AM Thermal Protector

250V 17AM Thermal Protector

17AM high temp cutout switch

Product Description

Bimetal Motor 17AM Thermal Protector High Temp Cutout Switch 250V

Product Specifications

Attribute	Value
Product name	17AM thermal protector
Temperature range	50~180℃
Tolerance	±3℃,±5℃
Voltage	250V
Current	<10A
Material	Metal
Application	Pump motor
Feature	Snap action switch

Product Overview

The HCET factory direct 17AM Thermal Protector replaces Klixon 7AM bimetal motor thermal cutout switches for pump motors. This reliable overheating protection device automatically cuts off power when motors exceed safe temperatures, preventing equipment damage. Its durable construction and precise temperature control make it ideal for pump motors and similar applications.

Key Features

Bimetal structure: High-performance bimetal core provides fast response and precise temperature control
Reset options: Choose between automatic reset (returns to normal operation when temperature stabilizes) or manual reset (requires intervention for additional safety control)
Compact design: Space-efficient construction for easy installation in motors with limited space
High heat resistance: Manufactured with temperature-resistant materials for stable operation in demanding environments
Multiple specifications: Available in various current and voltage configurations to match different equipment requirements
Quick cut-off: Rapid power interruption within seconds of detecting overheating conditions
Environmentally friendly: Compliant with environmental standards using non-toxic materials

Electrical Characteristics

Temperature Range	50℃~180℃ (Customizable temperature available)
Temperature Tolerance	±3℃, ±5℃
Electrical Specifications	20amps/16volts DC 20amps/125 volts DC 10amps/250volts AC

Dimensions

Product Details

Typical Applications
