Y89 Dual Trip Motor Dc Motor Thermal Protection Cutoff Switch 50-180℃ Temp And Current

Name: Y89 Dual Trip Motor Dc Motor Thermal Protection Cutoff Switch 50-180℃ Temp And Current
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HCET-B
Availability: InStock

Brand Name:	HCET
Model Number:	HCET-B
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL, ROHS, TUV, CE

Document:

B.pdf

Product Name:

HCET-B Thermal Protection Switch

Temperature Range:

50~180℃

Tolerance:

±5℃,±8℃

Voltage:

250V

Protection Current:

1~35A

Trip Time:

3~8 Sec

Application:

Motors/Appliances/Power Tools

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Y89 dc motor thermal protection

dc motor thermal protection Cutoff

thermal protector motor Cutoff

Product Description

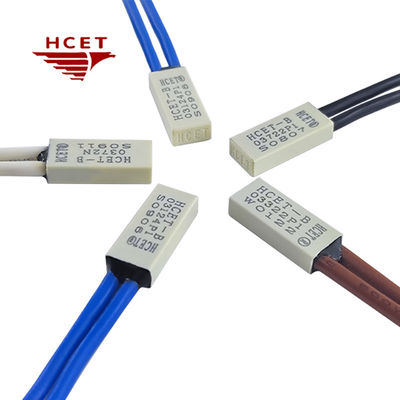

HCET-B Thermal Protection Switch - Dual Trip Motor Protection (50-180℃ & 1-35A)

Key Product Attributes

Attribute	Specification
Product Name	HCET-B thermal protection switch
Temperature Range	50~180℃
Tolerance	±5℃,±8℃
Voltage	250V
Protection Current	1~35A
Trip Time	3~8 sec
Application	Motors/Appliances/Power Tools

Product Overview

The HCET-B thermal protection switch is a precision-engineered safety device that combines temperature monitoring and current overload protection in a compact, IP20-rated housing. This self-resetting protector offers customizable trip parameters (50-180℃ ±5℃ & 1-35A current) with rapid 3-8 second circuit interruption to prevent motor burnout and equipment damage.

Key Features

Dual Protection Mechanism: Temperature protection (50-180°C ±5°C accuracy) and current protection (1-35A programmable tripping thresholds)
Industrial Reliability: Precise 3-8 second trip response with manual reset function and high load capacity (35A 125VAC / 25A 250VAC)
Global Compliance: Meets RoHS/UL environmental directives with 10,000 cycles mechanical life and wide operating range (-30°C to +150°C)
Versatile Installation: Compact size (20.2*8.5*4.4mm) with terminals compatible with AWG 22-16 cable

Electrical Specifications

Temperature Range: 50℃~180℃ (Customizable)

Action Time: 3s~8s

Temperature Tolerance: ±5℃ ±8℃

Current Tripping Range: 1A~35A

Electrical Ratings: 30A/15V DC, 15A/30V DC, 25A/250V AC, 35A/125V AC

Product Dimensions

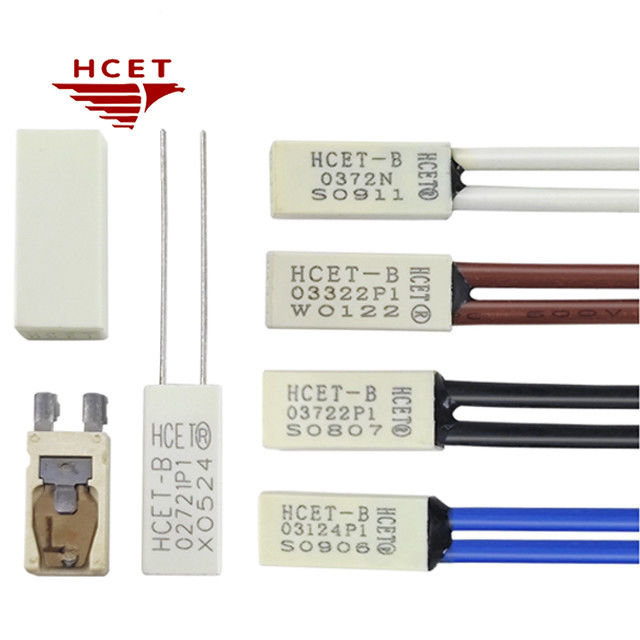

Product Details

Typical Applications
