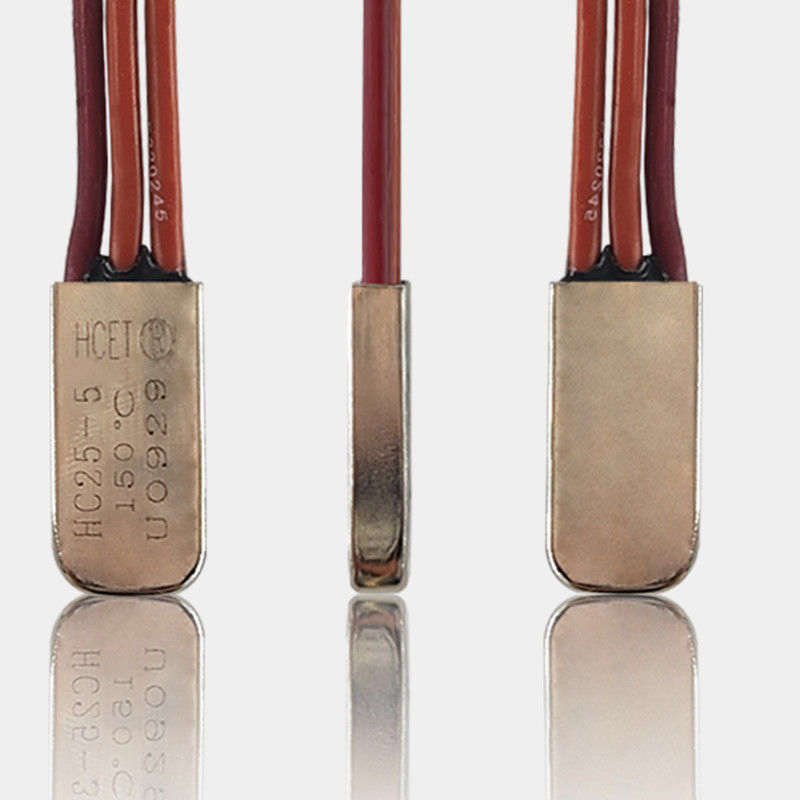

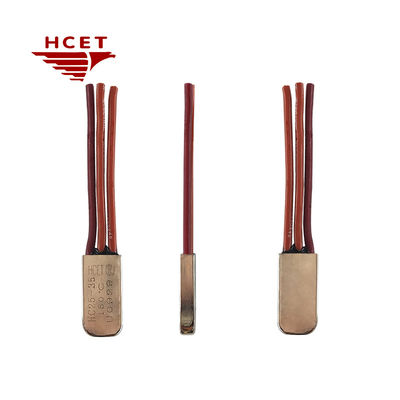

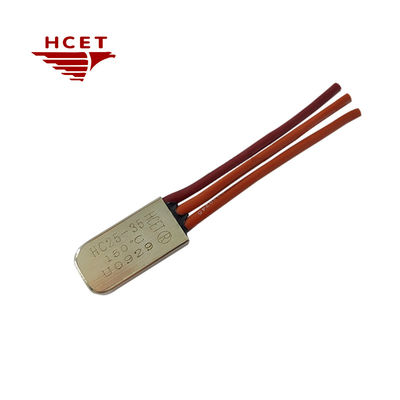

Bimetal Thermal Cutoff KSD9700 Thermostat Switch Protector 380V

Name: Bimetal Thermal Cutoff KSD9700 Thermostat Switch Protector 380V
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC25
Availability: InStock

Brand Name:	HCET
Model Number:	HC25
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

HC25.pdf

Product Name:

HC25 Thermal Cutoff Switch

Material:

Metal Case

Temperature Range:

70℃~160C

Tolerance:

±5℃,±8℃

Voltage:

250V

Current:

16-40A

Application:

Transformers

Packaging Details:

2000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Bimetal KSD9700 thermostat

380V KSD9700 thermostat

380V ksd bimetal thermostat

Product Description

Bimetal Thermal Cutoff KSD9700 Thermostat Switch Protector 380V

Product Specifications

Attribute	Value
Product name	HC25 thermal cutoff switch
Material	Metal case
Temperature range	70℃~160℃
Tolerance	±5℃,±8℃
Voltage	250V
Current	16-40A
Application	Transformers

Product Description

HCET HC25 KSD9700 Three-Phase High Current Thermal Protector (380V 16A/25A/35A) Motor Protection Switch for Transformers

The HC25 series high-current temperature control switch adopts a pure temperature design to ensure an internal low-resistance circuit, and is suitable for large-current circuits such as high-power motors, water pumps, and transformers.

Key Features

Military-Grade Epoxy Encapsulation
Vacuum-sealed construction resists dust, moisture and mechanical stress (IP67 equivalent protection)
Ultra-Low Contact Resistance (＜50mΩ)
Minimizes energy loss in high-current applications like CNC machines & power transformers
Precision Temperature Calibration
±5℃ tolerance with 70-160℃ range options, ideal for HVAC compressors and industrial pump motors
Anti-Arc Copper Alloy Contacts
Withstands 10,000+ switching cycles at 380V/35A for mining equipment and heavy machinery

Electrical Characteristics

70℃~160℃
Temperature Range (Customizable temperature, please contact us.)

±5℃, ±8℃
Temperature Tolerance

250V AC 50HZ/60HZ
16A,25A,35A Electrical Specifications

Dimensions

Product Details

Applications
