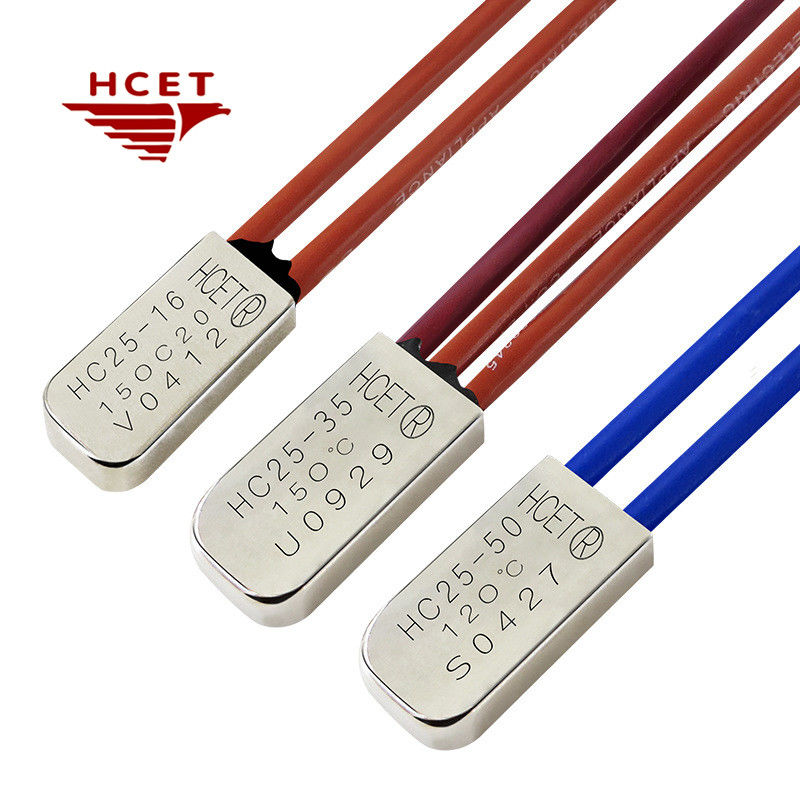

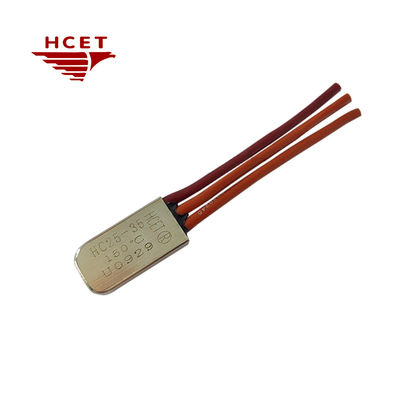

25A 35A High Temperature Thermal Cutoff Switch Protection Device For Industrial Motor

Name: 25A 35A High Temperature Thermal Cutoff Switch Protection Device For Industrial Motor
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: HC25
Availability: InStock

Brand Name:	HCET
Model Number:	HC25
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS

Document:

HC25.pdf

Product Name:

HC25 Thermal Cutoff Switch

Material:

Metal Case

Temperature Range:

70℃~160C

Tolerance:

±5℃,±8℃

Voltage:

250V

Current:

16-40A

Application:

Oil Pumps, Industrial Motors, Power Tools

Packaging Details:

2000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

25A Thermal Cutoff Switch

Thermal Cutoff Switch Device

Motor high temperature cutoff switch

Product Description

25A 35A High Temperature Thermal Cutoff Switch Protection Device For Industrial Motor

Product Specifications

Attribute	Value
Product name	HC25 thermal cutoff switch
Material	Metal case
Temperature range	70℃~160℃
Tolerance	±5℃,±8℃
Voltage	250V
Current	16-40A
Application	Oil Pumps, Industrial Motors, Power Tools

Product Overview

The HC25 Series Three-Phase High Current Thermal Protector is engineered for heavy-duty applications requiring reliable over-temperature and over-current protection. Designed with a pure temperature-sensitive mechanism, this protector minimizes current interference and ensures ultra-low internal resistance (≤50mΩ) for energy-efficient operation in high-power systems.

It features epoxy-sealed construction to withstand harsh environments such as oil pumps, industrial motors (up to 35A), transformers, and electric vehicle charging systems. The precision-calibrated temperature range (70°C-160°C ±5°C) and vacuum varnished contacts guarantee stable performance in continuous duty cycles, making it the ideal safeguard against motor burnout in HVAC systems, agricultural equipment, and automated machinery.

Key Features

High-Current Capacity: Supports 25A/35A three-phase loads with minimal voltage drop, perfect for 250V AC industrial motors and pumps.
Precision Thermal Protection: Pure bimetal technology with ±5°C accuracy prevents false tripping while protecting windings from overheating damage.
Industrial-Grade Durability: Epoxy-encapsulated design resists oil contamination, dust ingress, and vibration in oil extraction pumps and construction equipment.

Electrical Characteristics

Temperature Range	70℃~160℃ (Customizable temperature available)
Temperature Tolerance	±5℃, ±8℃
Electrical Specifications	250V AC 50HZ/60HZ, 16A, 25A, 35A

Dimensions

Product Details

Applications
