HCET VA1/VAA1 Bimetal Creep Action Thermostat Adjustable Temperature Overheat Protection

Name: HCET VA1/VAA1 Bimetal Creep Action Thermostat Adjustable Temperature Overheat Protection
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: VA1/VAA1
Availability: InStock

Brand Name:	HCET
Model Number:	VA1/VAA1
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

A1 AA1.pdf

Product Name:

VA1 Creep Action Thermostat

Material:

Plastic Case

Temperature Range:

0~200℃

Tolerance:

±3℃,±5℃

Voltage:

120V

Current:

Application:

Electric Underblankets

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

HCET VA1 Creep Action Thermostat

Bimetal Creep Action Thermostat

Adjustable bimetal temperature switch

Product Description

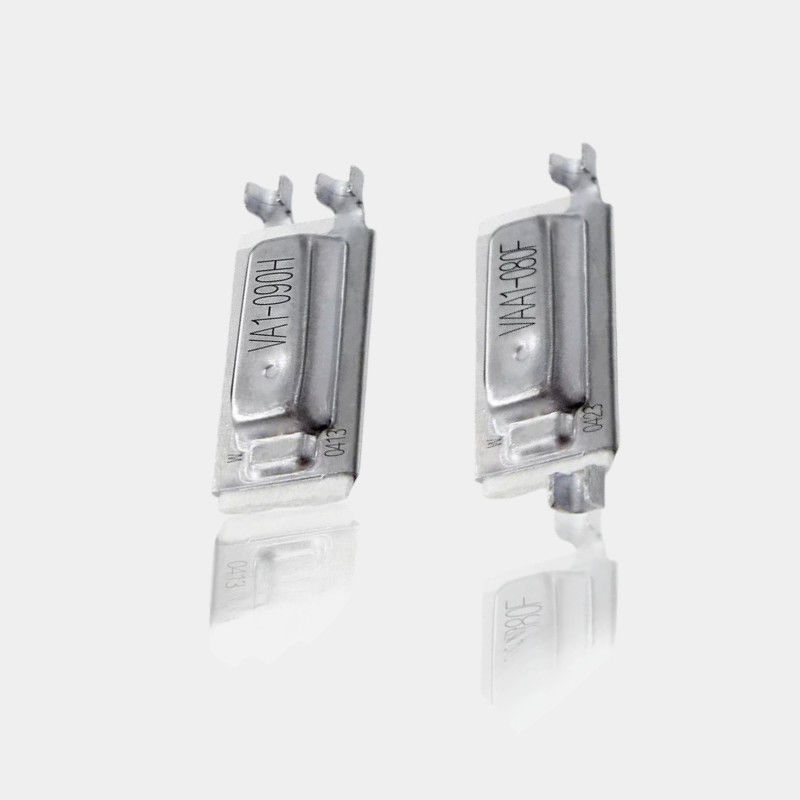

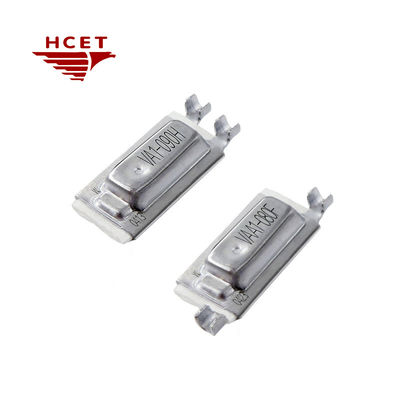

HCET VA1/VAA1 Bimetal Creep Action Thermostat Adjustable Temperature Overheat Protection

Attribute	Value
Product name	VA1 creep action thermostat
Material	Plastic case
Temperature range	0~200℃
Tolerance	±3℃,±5℃
Voltage	120V
Current	5A
Application	Electric underblankets

Precision Temperature Control for Safety Applications

The HCET VA1/VAA1 Series is a precision-engineered creep action thermostat utilizing conductive bimetal technology for reliable low-voltage temperature control. Designed with slow make/break switching mechanics, this safety-rated device provides ±3℃ accuracy across a 5℃-200℃ range, ideal for overheating prevention in personal heating appliances and industrial equipment. Certified to UL/CE standards, its electrically live case with optional insulation sleeve ensures compliance with global safety regulations while supporting 5A/120V AC.

Key Features

Bimetal Conductive Design Current-carrying bimetal structure eliminates secondary circuits, enhancing response speed and durability.
Creep Action Mechanism Gradual contact engagement reduces arcing, extending lifespan to 100,000+ cycles even under frequent load switching.
Precision Temperature Control Factory-calibrated with ±3℃/±5℃/±8℃ tolerance options, ensuring consistent thermal protection for sensitive applications.
Versatile Termination Options Choose VA1 (same-end) or VAA1 (opposite-end) terminal configurations, with optional pre-wired leads for OEM integration.

Electrical Specifications

Temperature Range: 0℃~200℃ (Customizable temperature available)

Temperature Tolerance: ±3℃, ±5℃, ±8℃

Electrical Ratings: VA1 & VAA1: 2A/120VAC; VA2 & VAA2: 5A/120V AC

Product Dimensions

Product Details

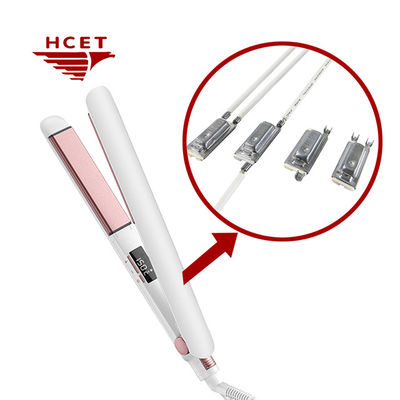

Typical Applications
