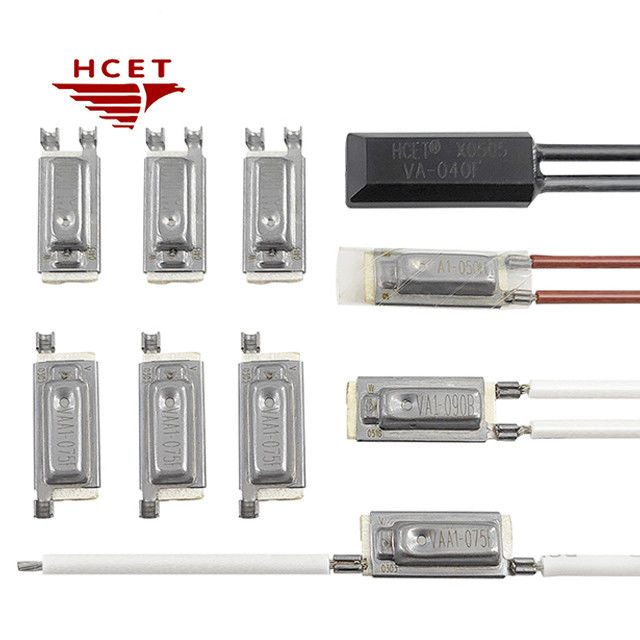

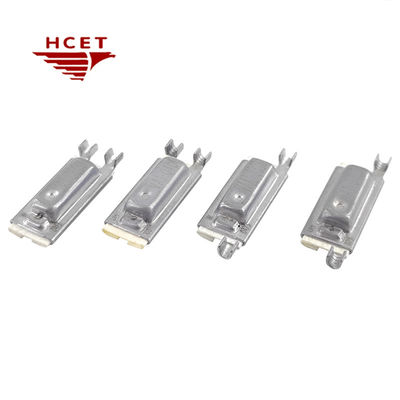

120V Bimetal Thermal Creep Action Switch Thermostat Low Voltage Temperature Controller

Name: 120V Bimetal Thermal Creep Action Switch Thermostat Low Voltage Temperature Controller
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: VA1/VAA1
Availability: InStock

Brand Name:	HCET
Model Number:	VA1/VAA1
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

A1 AA1.pdf

Product Name:

VA1 Creep Action Thermostat

Material:

Plastic Case

Temperature Range:

0~200℃

Tolerance:

±3℃,±5℃

Voltage:

120V

Current:

Application:

Car Seat Heaters/Medical Heating Pads

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

120V ksd9700 temperature switch

ksd9700 temperature switch Thermostat

120V bimetal thermal switch

Product Description

HCET VA1/VAA1 Bimetal Creep Action Thermostat Low Voltage Temperature Controller for Car Seat Heaters/Medical Heating Pads

The HCET VA1/VAA1 series creep action thermostats are precision-engineered thermal protection devices with shunt-type bimetal technology. Designed for low-voltage heating applications requiring reliable temperature control, these UL certified components feature conductive bimetal construction that ensures stable current carrying capacity up to 5A. With preset calibration temperatures ranging from 5℃ to 200℃ (±3℃/±5℃/±8℃ tolerance), these slow-make/slow-break thermostats prevent arcing and extend equipment lifespan.


Product feature:

Bimetal Construction
- Conductive bimetal directly carries the circuit current, reducing contact resistance.
- Special alloy material ensures long-term temperature sensitivity
Creep Action Mechanism
- Creep action and breaking action prevents arcing (5A/24VDC & 5A/120VAC).
- Suitable for frequent start/stop heating scenarios
Medical-Grade Safety
- Certified to IEC 60601-1 for medical devices.
- Built-in insulating sleeve prevents the risk of electrical leakage
Cross-Industry Application
- Automotive electronics: seat heating/steering wheel heating systems
- Home Appliances: Electric Blankets / Foot Warmers / Pet Heating Pads
- Medical Equipment: Physical Therapy Devices / Warming Blankets / Infusion Heaters
Industrial Durability
- 100,000 times mechanical life test
-30℃~300℃ ambient temperature resistance
- Vibration Resistant Design

Electrical Characteristics:

0℃~200℃

Temperature Range

(Customizable temperature, please contact us.)

±3℃, ±5℃, ±8℃

Temperature Tolerance

VA1&VAA1: 2A/120VAC

VA2&VAA2: 5A/120V AC

Electrical Specifications

Dimension size

120V Bimetal Thermal Creep Action Switch Thermostat Low Voltage Temperature Controller 0

Product detail

120V Bimetal Thermal Creep Action Switch Thermostat Low Voltage Temperature Controller 1

Application

120V Bimetal Thermal Creep Action Switch Thermostat Low Voltage Temperature Controller 2
