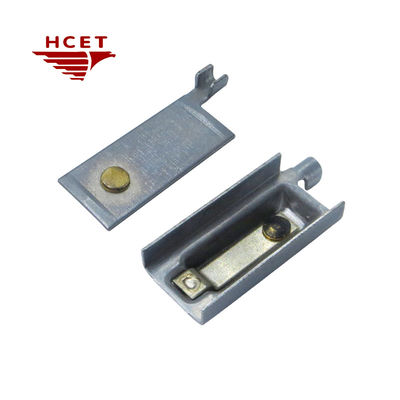

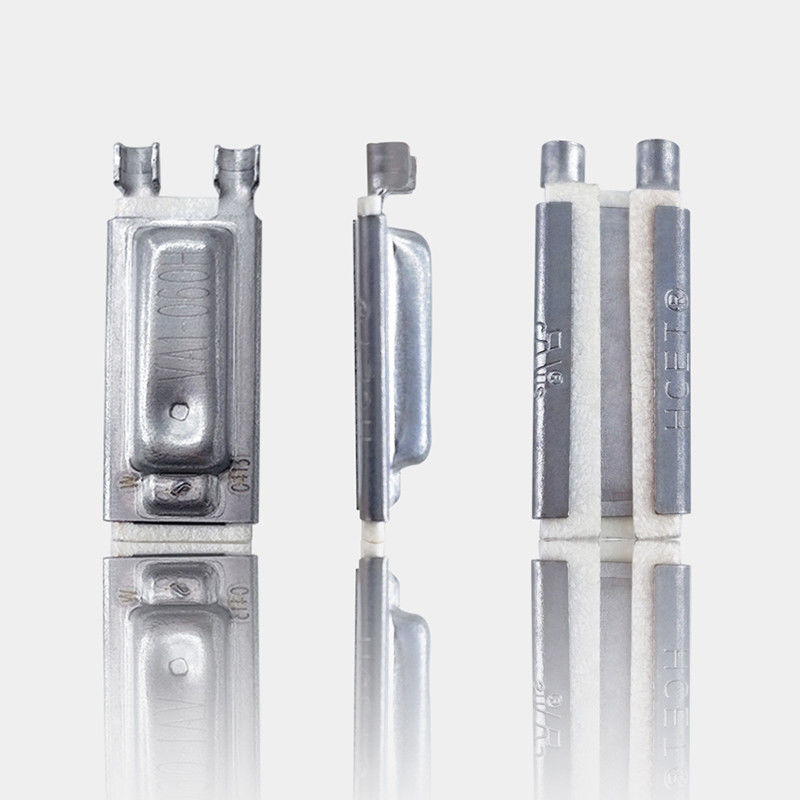

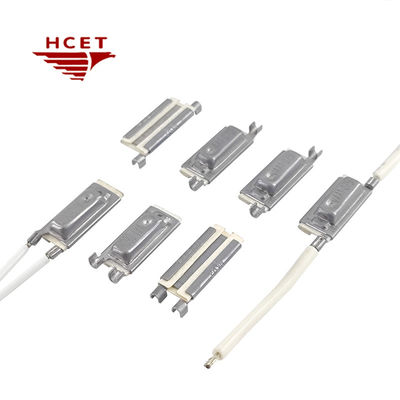

Creep Action Bimetal Thermostat Thermal Switch 120V 5A

Name: Creep Action Bimetal Thermostat Thermal Switch 120V 5A
Brand: Nanjing Haichuan Electronic Co., Ltd.
SKU: VA1/VAA1
Availability: InStock

Brand Name:	HCET
Model Number:	VA1/VAA1
MOQ:	1000
Price:	please contact us
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQC, UL, TUV, CE, ROHS

Document:

A1 AA1.pdf

Product Name:

VA1 Creep Action Thermostat

Material:

Plastic Case

Temperature Range:

0~200℃

Tolerance:

±3℃,±5℃

Voltage:

120V

Current:

Application:

Battery Power Source

Packaging Details:

5000 pcs per carton

Supply Ability:

10000000 pcs per month

Highlight:

Creep Action ksd bimetal thermostat

120V ksd bimetal thermostat

120V ksd1 thermal switch

Product Description

Creep Action Bimetal Thermostat Thermal Switch 120V 5A

Product Specifications

Attribute	Value
Product name	VA1 creep action thermostat
Material	Plastic case
Temperature range	0~200℃
Tolerance	±3℃,±5℃
Voltage	120V
Current	5A
Application	Battery Power Source

Product Overview

The VA1/VAA1 Series Creep Action Thermostat is a precision-engineered temperature control solution designed for safety-critical heating applications. Featuring a conductive bimetal construction, this slow-make/slow-break thermostat ensures reliable operation in low-voltage systems (120V AC) while minimizing electrical arcing for extended lifespan.

Key Features

200°C Overheat Protection - Prevents device damage and fire hazards in electric blankets, heating pads, and medical warming systems.
5A High-Current Capacity - Supports resistive loads up to 5A (120V AC), ideal for battery-powered and household appliances.
Zero Differential Design - Instant response to temperature changes without hysteresis, ensuring consistent thermal management.
Factory-Calibrated Precision - Preset activation temperatures from 5°C to 200°C (±3°C tolerance option available) for plug-and-play integration.
Compact & Durable Construction - Electrically live case with optional insulation sleeve (IP20 equivalent), suitable for space-constrained installations.

Electrical Characteristics

Temperature Range: 0℃~200℃ (Customizable temperature available upon request)

Temperature Tolerance: ±3℃, ±5℃, ±8℃

Electrical Specifications: VA1 & VAA1: 2A/120VAC, VA2 & VAA2: 5A/120V AC

Product Dimensions

Product Details

Application Examples
