Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Motor Thermal Protector
Created with Pixso. HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection
Name
  • Name
  • Name
  • Name
  • Name

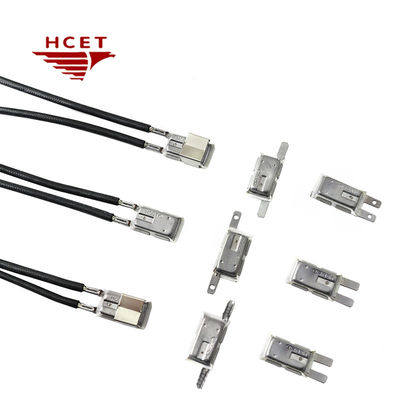

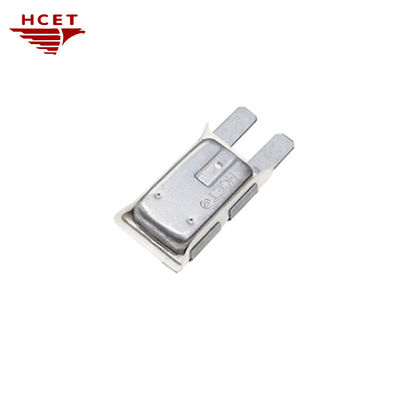

HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection

Brand Name: HCET
Model Number: HC01/6AP
MOQ: 1000
Price: please contact us
Delivery Time: 5-7 work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS
Document:
6AP.pdf
Product Name:
6AP Motor Thermal Protector
Material:
Metal Case
Temperature Range:
30~180℃
Tolerance:
±8℃,±5℃
Voltage:
30V DC / 250V AC
Current:
Customizable
Application:
Automotive & Appliance Protection
Packaging Details:
20000 pcs per carton
Supply Ability:
10000000 pcs per month
Highlight:

6ap motor thermal protector

,

6ap motor thermal protection switch

,

bimetal motor thermal protector

Product Description

HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection

The HCET HC01/6AP is a bimetal motor overload protector designed for precision thermal cutoff in DC/AC motors. With a trip current range of 1-45A and temperature sensitivity (30℃-180℃ customizable), it ensures reliable protection against overheating in automotive systems (window regulators, wiper motors), home appliances (washing machines, vacuum cleaners), and industrial equipment. Featuring RoHS-compliant construction and ±5℃ temperature tolerance, this compact protector offers KLIXON-grade performance with customizable terminal configurations (insert/wire options) for seamless integration.

Product feature:

  • Dual-Sensing Protection
    Combines current overload detection (1-45A range) and ambient temperature monitoring for multi-scenario motor protection.
  • Precision Trip Mechanism
    Bimetal-heater hybrid design ensures 4-10s fast response with ±5℃ accuracy to prevent irreversible motor damage.
  • Automotive-Grade Durability
    30A 125VAC/28A 250VAC ratings withstand harsh environments in car window motors, sunroof systems, and wiper assemblies.
  • Customizable Integration
    Choose from 8 terminal types (same/opposite insert) or direct wire connections for OEM compatibility.
  • Multi-Industry Application
       - Automotive: Door lock actuators, power seat motors
       - HVAC: Blower fans, compressor units
       - Home Appliances: Garden tools, dishwasher pumps

Electrical Characteristics:


30℃~180℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±5°C, ±8℃
Temperature Tolerance		 1A~45A
The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC                                           15amps/30 volts DC

25amps/250 volts AC                                         30amps/125 volts AC
Electrical characteristics


Dimension size

HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection 0


HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection 1

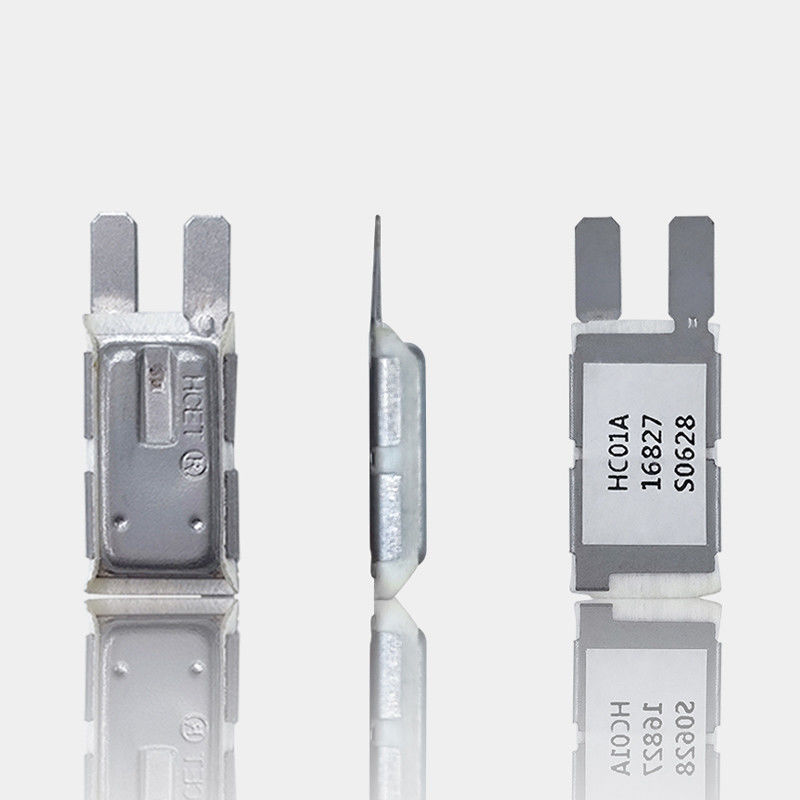

Product detail

HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection 2

HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection 3


Application

HC01/6AP Bimetal Thermal Motor Protector 1-45A Motor Overload Cutoff Switch for Automotive & Appliance Protection 4
